S-56 PC
Collaring range: Ø12–58 mm
Punch range: Ø5–22,5 mm
Run tube sizes: Ø16–108 mm
Pipe material: Steel, Stainless steel, Aluminium, Copper, Copper-Nickel, Copper Iron (CuFe2P)
Machine type: Industrial machines
Process: Collaring
S-56 PC 1500 PUNCHING AND COLLARING

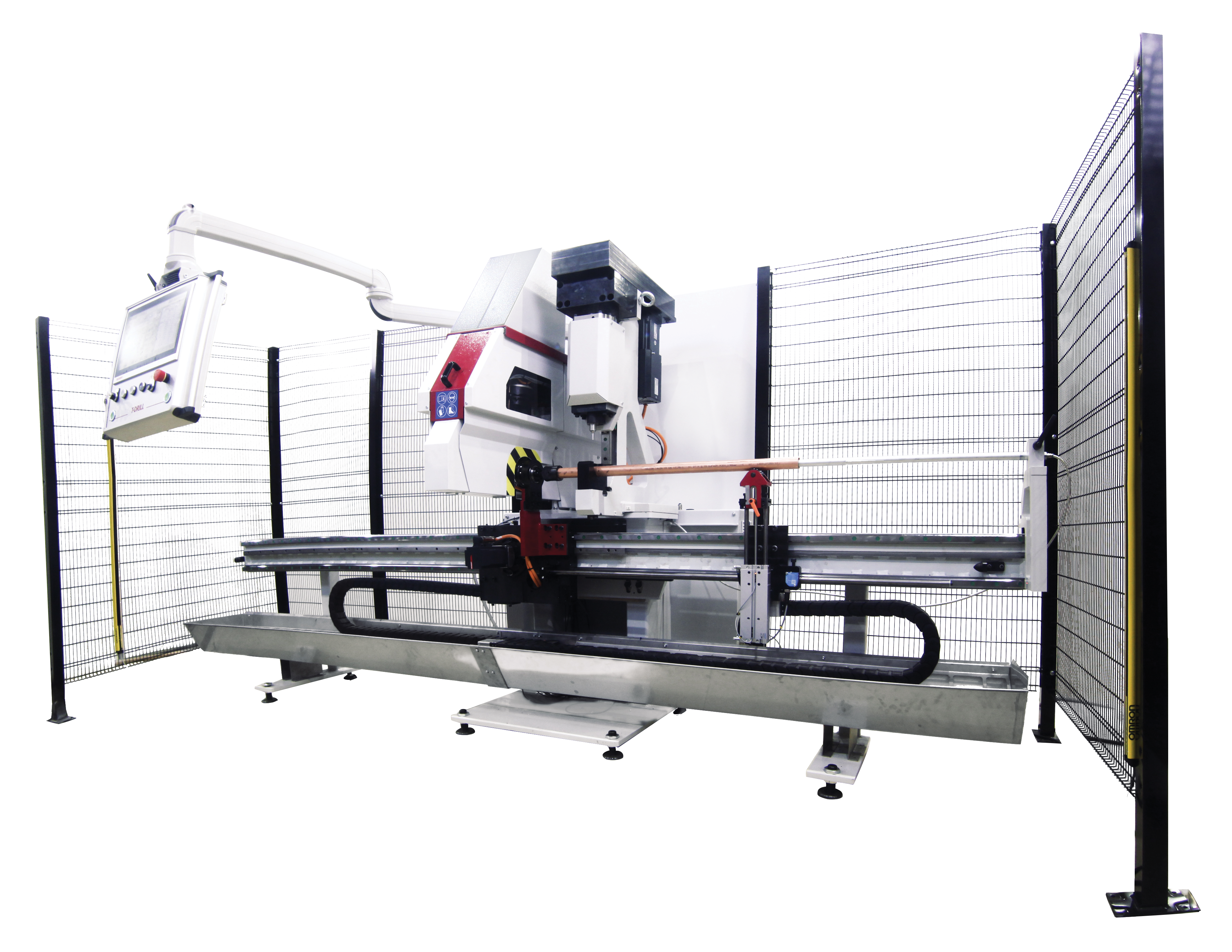

The T-DRILL S-56 PC is a cutting-edge punching and collaring unit that seamlessly combines two methods in a single unit, ensuring unparalleled efficiency and precision.

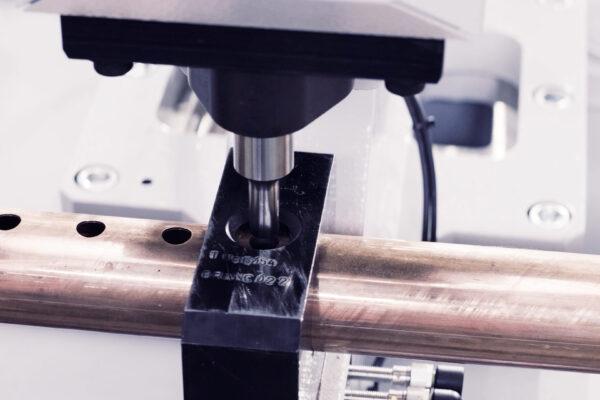

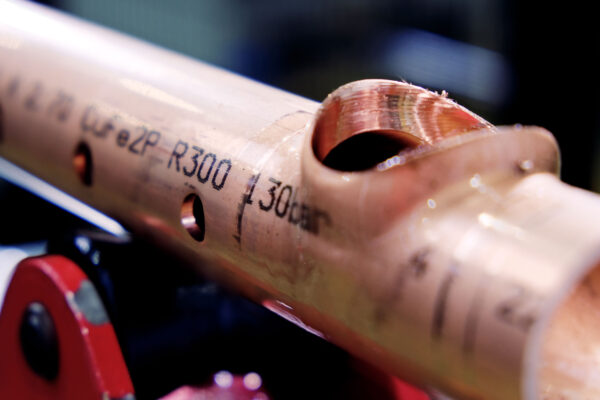

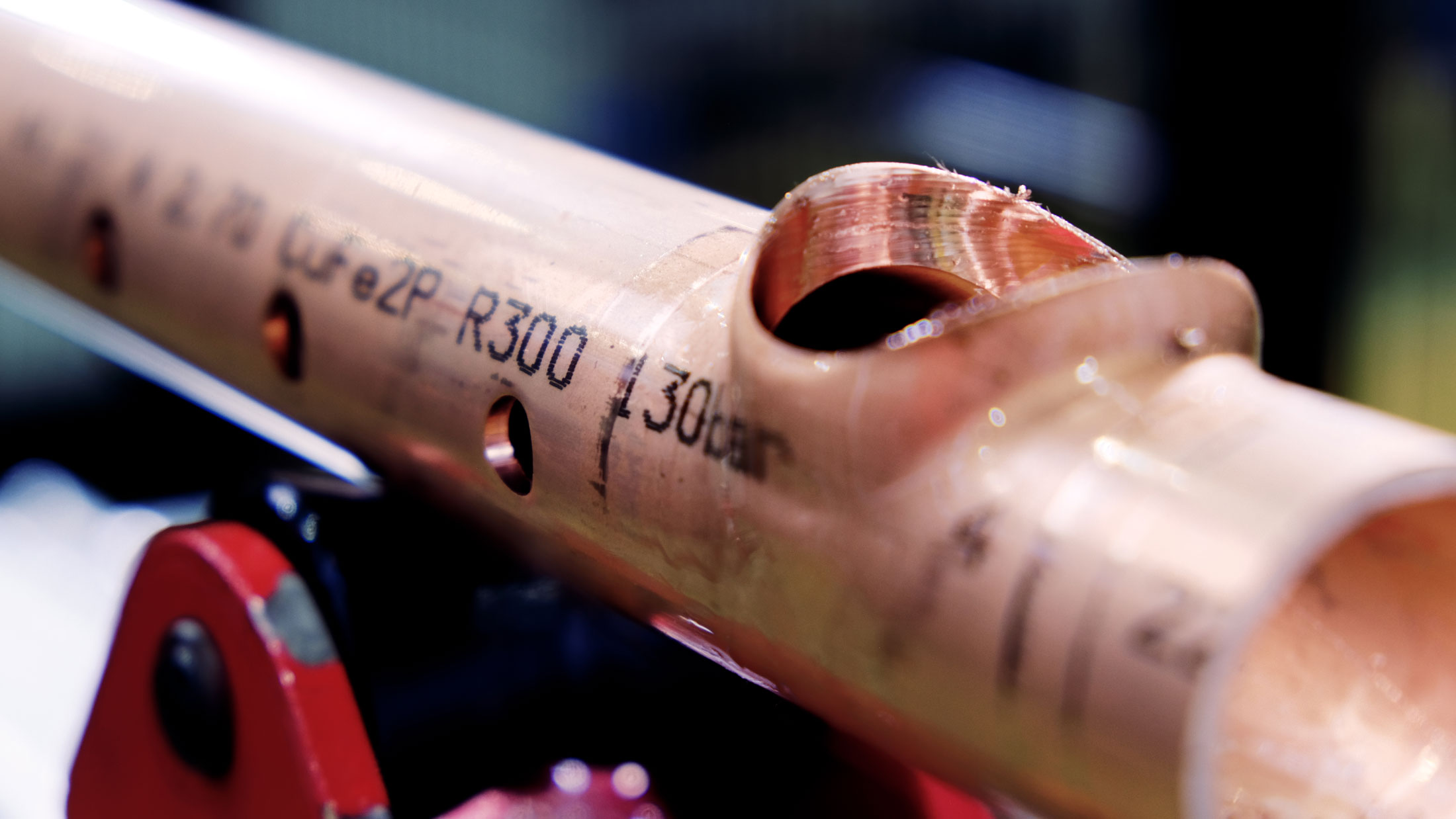

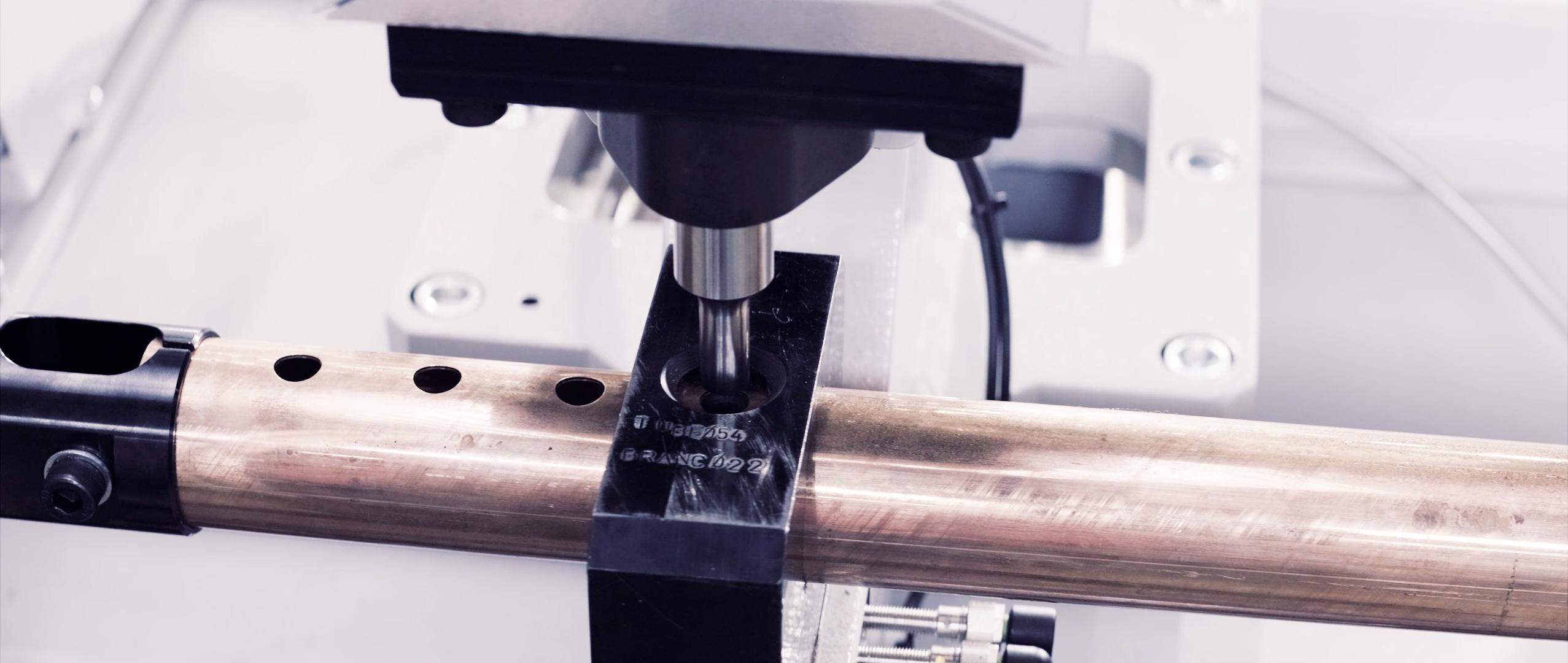

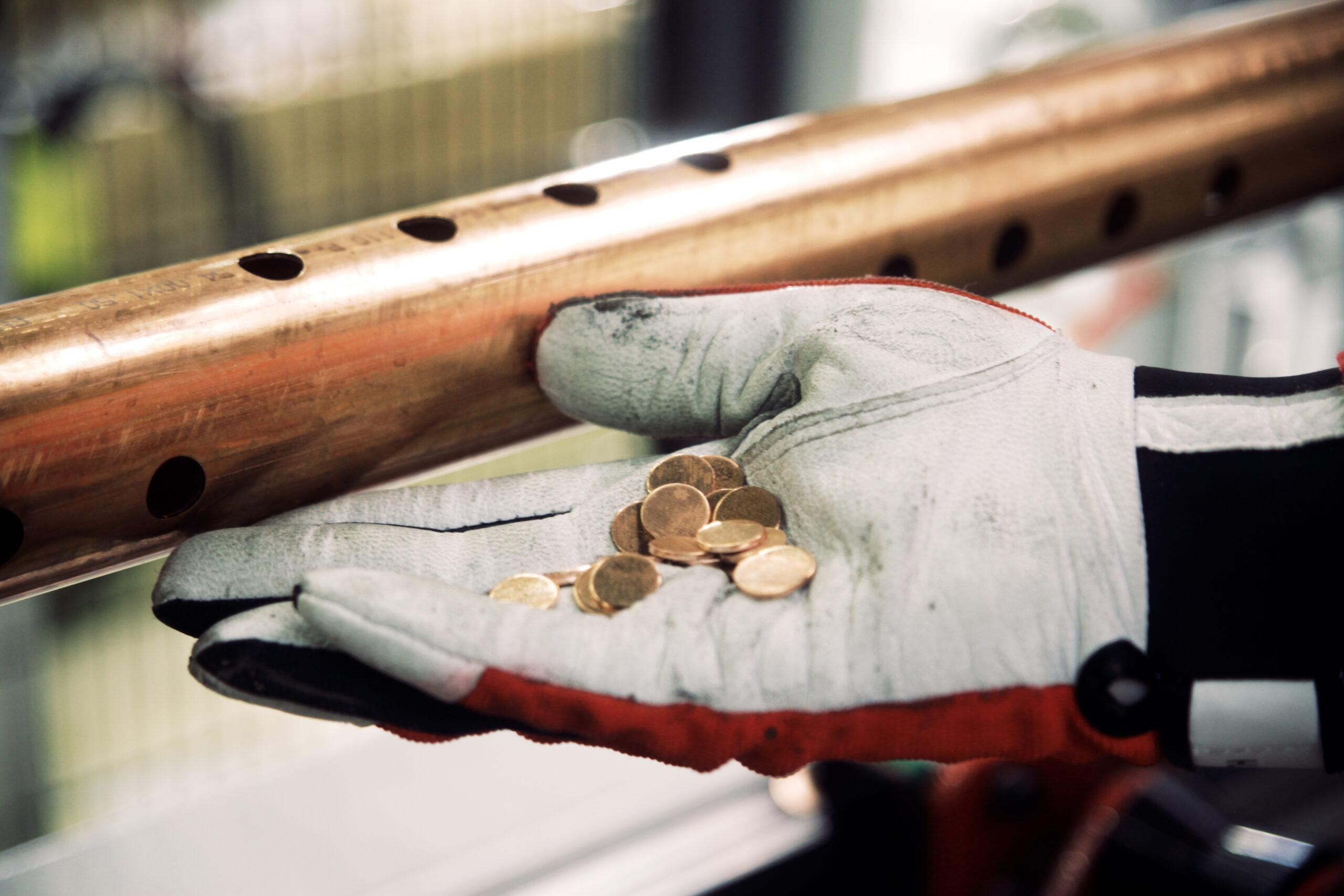

Designed for the HVACR industry, the S-56 PC offers classic T-DRILL Collaring alongside OD Punching in one cohesive system. Experience the swift production of C19400 Copper Iron (CuFe2P) manifolds with 50% less material handling, addressing the challenges in manufacturing coils for high-pressure CO2 systems.
TECHNICAL DETAILS
| Collaring range (Drilling/collaring/trimming) | O.D. Ø12–58 mm | ½"–2 ¼" |
| Collaring range (Drilling/collaring) | I.D. Ø6–54 mm | ¼"–2 1⁄8" |
| Punch range | Ø5–22,5 mm |
| Diameter of run tube | O.D. Ø16–108 mm ⁵/₈”–4 ¼ |
| Max. wall thickness of tube | 3,6 mm |
| Materials for workpiece | Fe, Stainless Steel, Al, Cu, CuNi, Copper Iron (CuFe2P) |
| Compressed air supply | 6–9 bar 87–130,5 psi |
| Punch range | Ø5–22,5 mm | ¼”–7/8” |
Note! The above values are intended as a guidance only.
