S-56 MULTIFLEX COLLARING MACHINE

S-56 MULTIFLEX – AUTOMATIC MULTI-UNIT COLLARING MACHINE

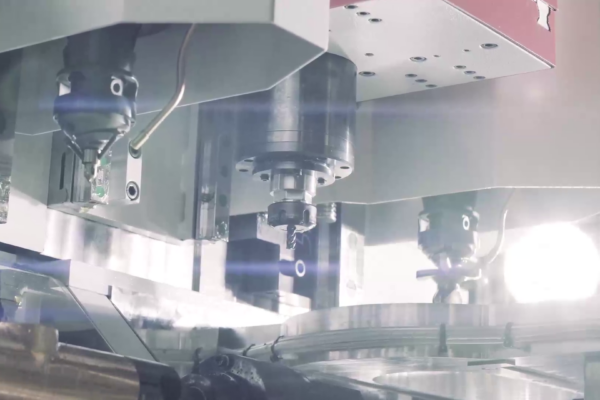

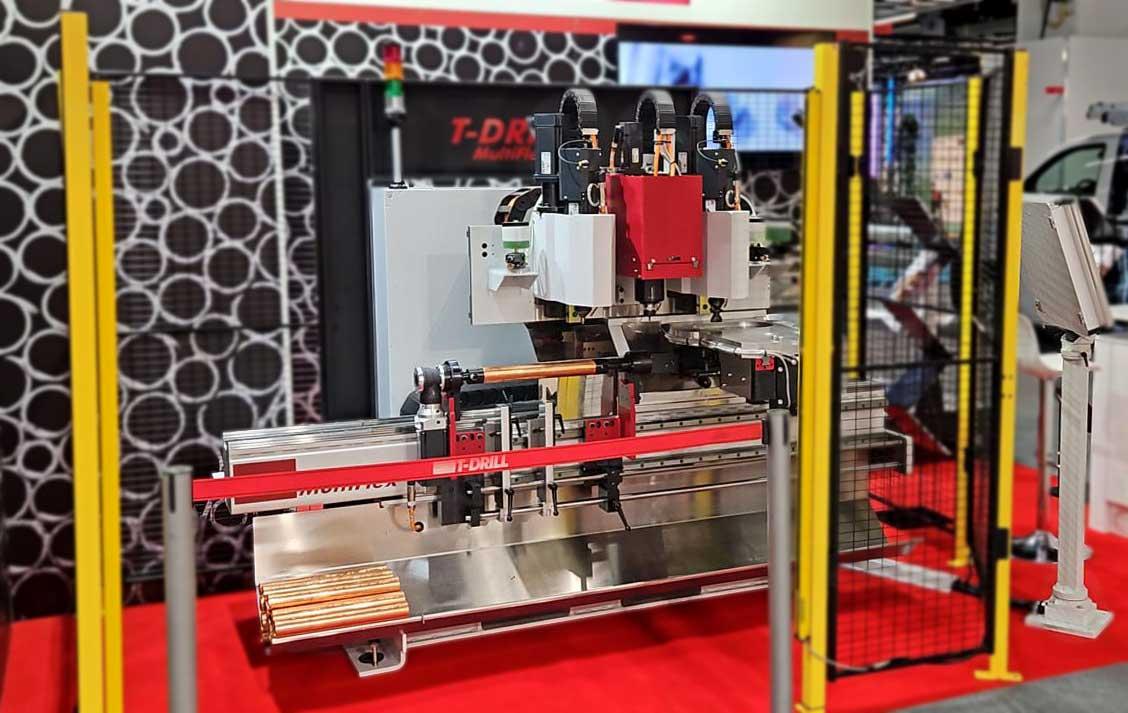

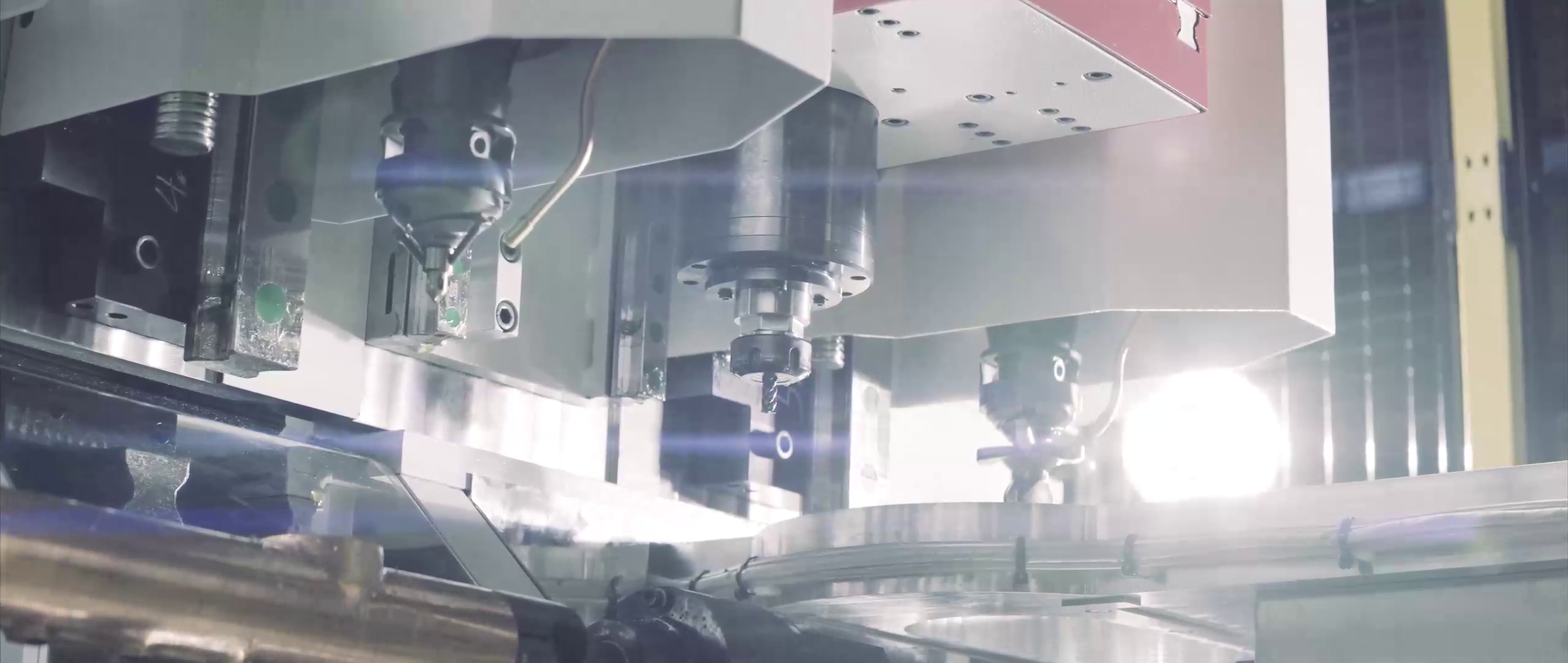

T-DRILL S-56 MultiFlex is a highly effective automatic multi-unit collaring machine for producing T-outlets for brazed and welded joints. The machine is designed to meet your specific collaring needs with up to three tool units.

• For lap joints: 1-3 collaring units
• For butt weld joints:1 milling unit for elliptical pilot holes and 1-2 collaring units with trimming feature for flat collars

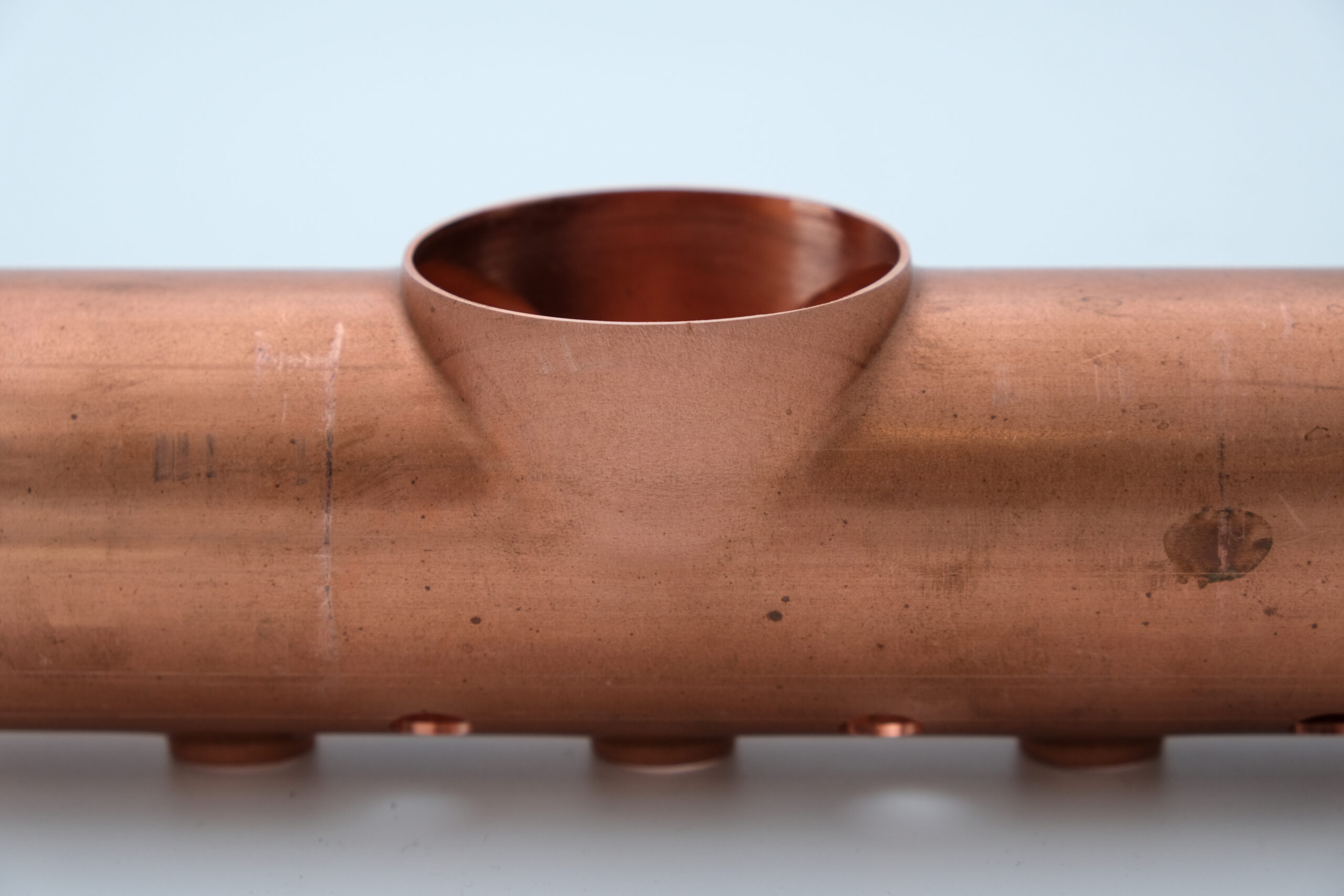

The S-56 MultiFlex produces quality collars up to 60,3 mm (O.D. 2 1/4”). It is ideal for producing variable collar sizes in steel and copper manifolds, but also suitable for all malleable materials (steel, stainless steel, aluminum, copper & copper-nickel).

The T-DRILL S-56 MultiFlex collaring process is fully automated and the drilling & trimming processes are optimized. Round pilot holes for lap joint collars are done with the same tool as collaring. Elliptical pilot holes for butt weld joint collars are done with the machine´s optional milling unit, which enables 1:1 butt weld collaring (collar diameter is the same as run tube diameter).

Being an Industry 4.0 ready machine utilizing the latest technology, the S-56 MultFlex is very versatile and easily customized to fit specific customer needs. The machine is easy to program and use, featuring a user-friendly GUI Interface with a color touch panel, adjustable machining parameters, and fine-tuning of motion profiles.

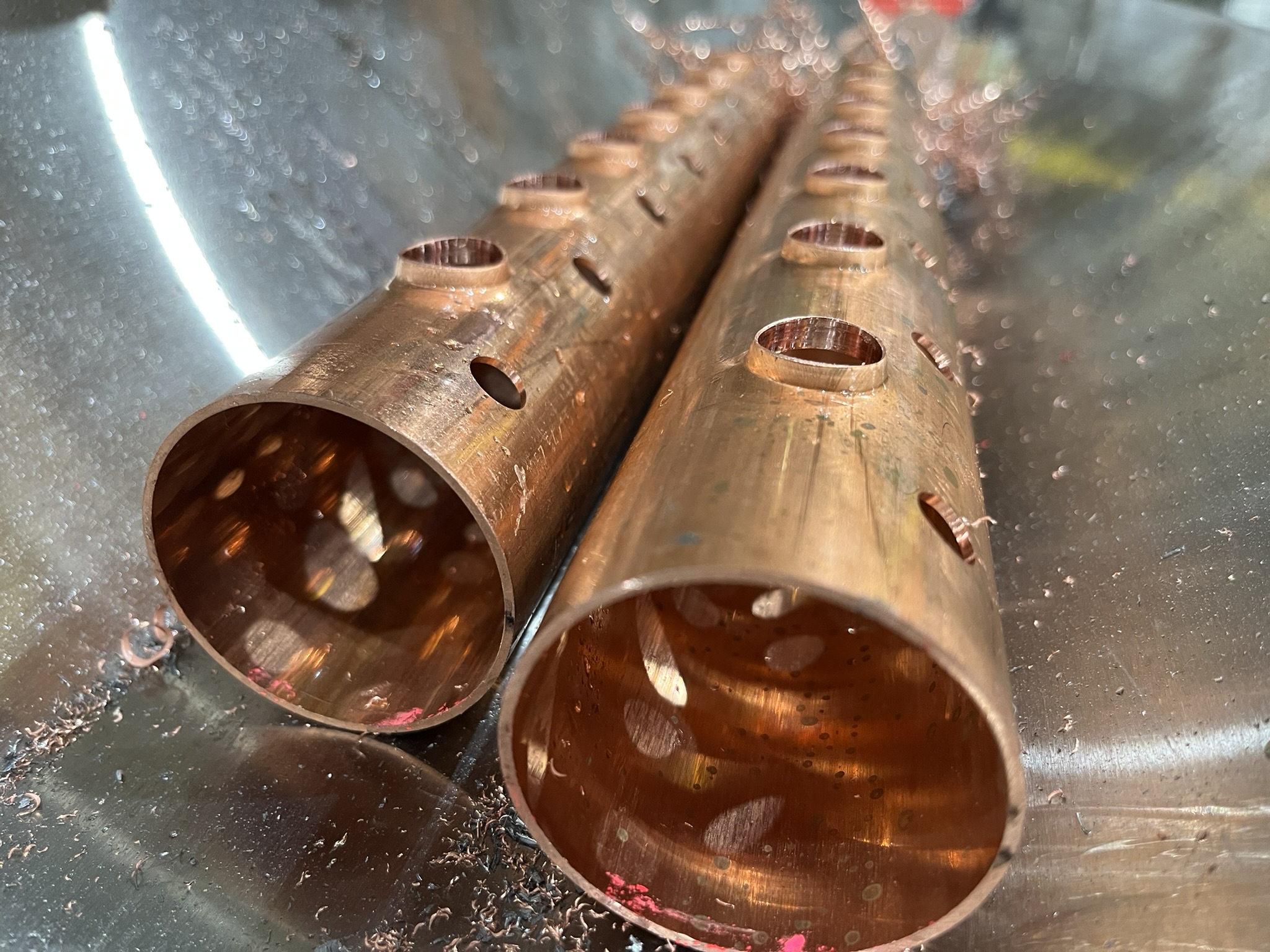

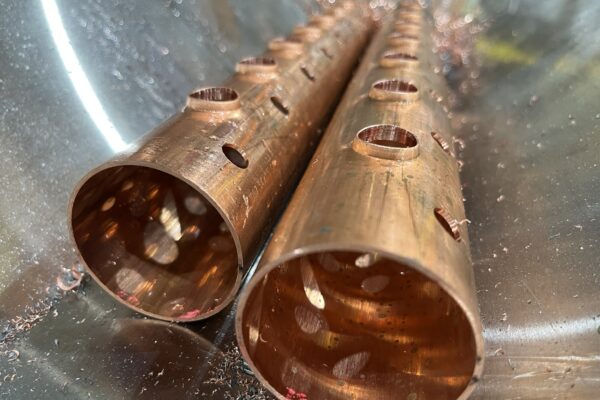

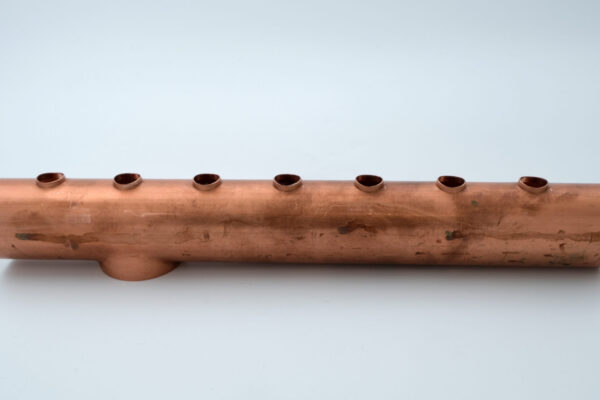

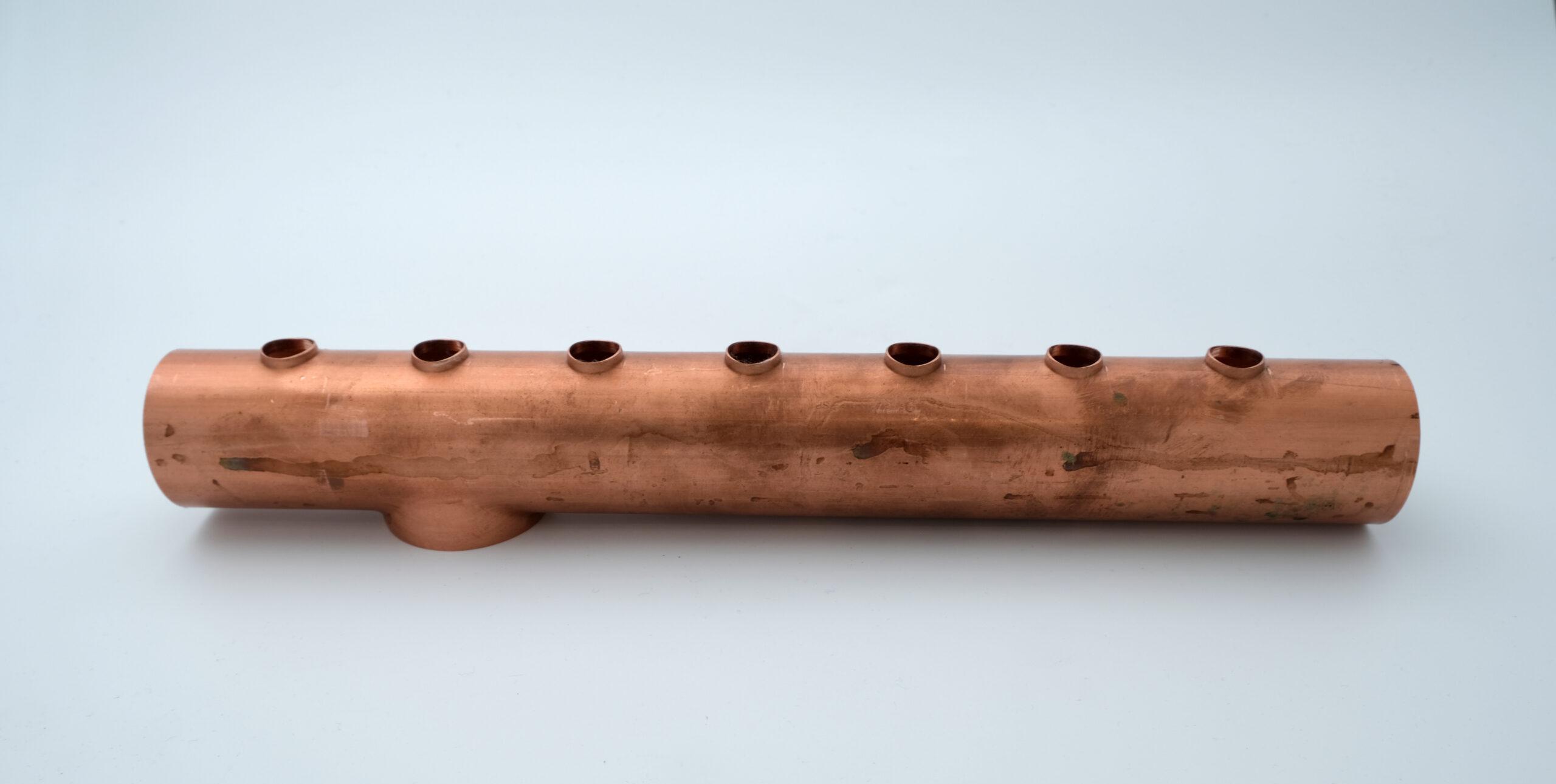

Efficient production: S-56 MultiFlex produced the pipe below in just 2 minutes and 52 seconds
