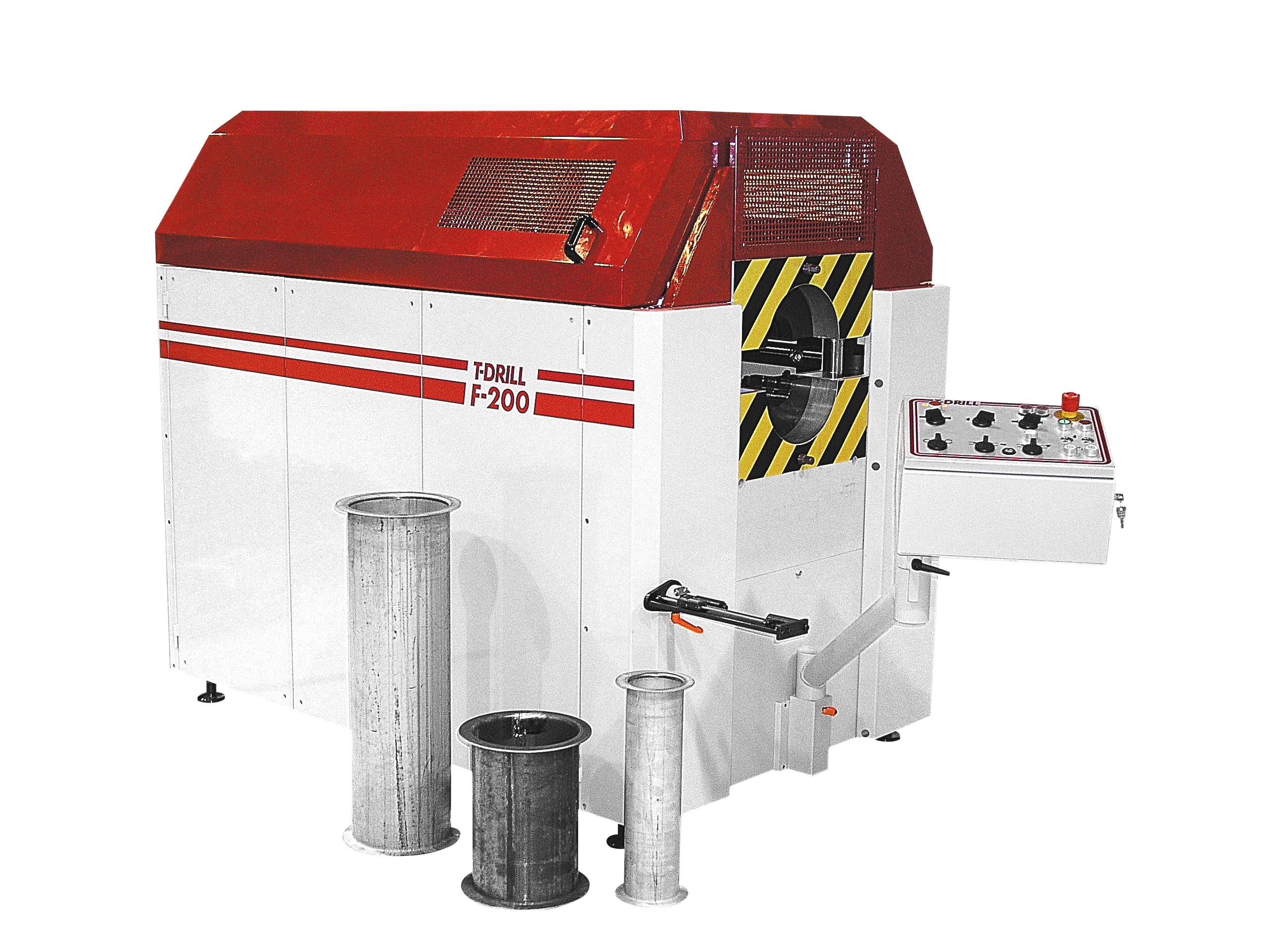

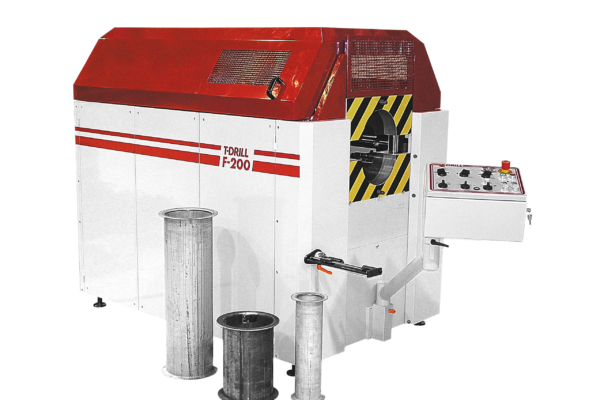

F-200
Pipe to be flanged: Ø21,3–219,1 mm | O.D. .840”–8.625”
Pipe material: Stainless Steel, Copper, Carbon Steel, Aluminum, CuNi
Machine type: Industrial machines
Process: Flanging
Only one tool is needed for tube length positioning and flanging
The T-DRILL F-200 is capable of both hot and cold forming of most malleable materials
Easy-to-use operational panel
F-200 FLANGING MACHINE FOR BOTH HOT AND COLD FORMING

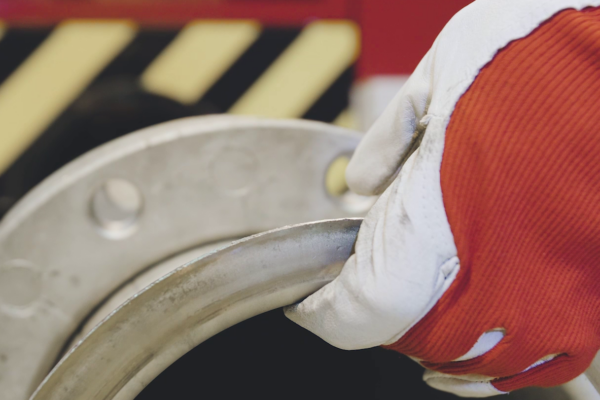

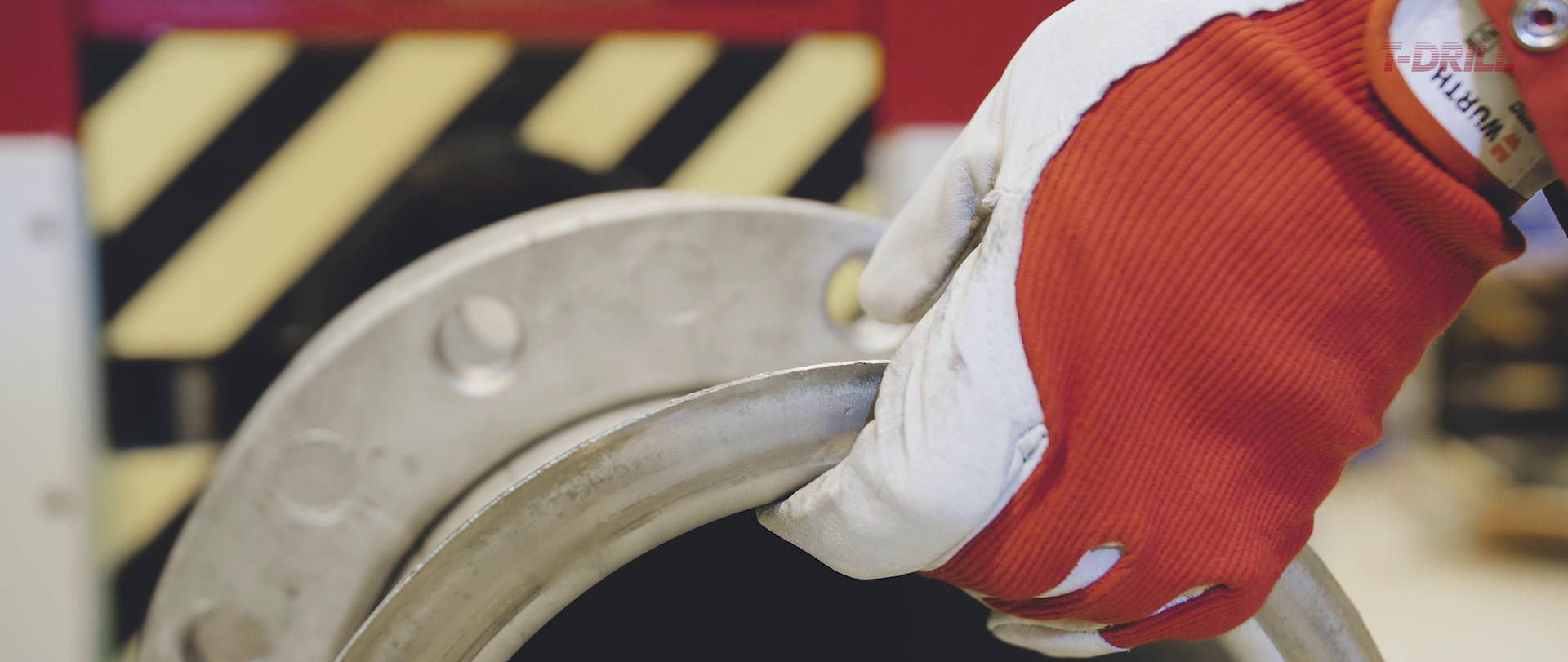

With the T-DRILL F-200 flanging machine lips and flanges are formed directly on the end of the pipe – a system that saves up to 40 % in time and costs compared with traditional weld neck flange connections.
Advantages of T-DRILL Flanging Machines:
- Lower workshop costs due to elimination of welding and X-raying
- Less working capital: no welding neck flange inventory or complex welding and X-raying equipment
- Loose flanges for quick installation – no difficult bolt-hole positioning
- Precise results and constant high quality: no risk of weld or braze fractures
- Cold and hot forming of long and bent pipes with smooth or grooved flanged surfaces
- Programmability for easy operation and practically no need for maintenance
F-200 meets the major requirements of the chemical and food-processing industries, and of shipbuilding and pipe fabrication in general.
T-DRILL Flanging method is approved e.g. by:
- Det Norske Veritas
- Germanischer Lloyd
- Lloyd’s Register of Shipping (Carbon Steel etc.)
- Lloyd’s Register of Shipping (CuNi)
- Bureau Veritas
- ASTM
- Pressure Equipment Directive (PED)
TECHNICAL DETAILS
| Mains supply | 200–240 V / 50 Hz /60 Hz, 3-phase 400–480 V / 50 Hz /60 Hz, 3-phase |
| Fuse | Min 3 x 50, Max 3 x 125 A (200–240 V) Min. 3 x 35, Max. 3 x 100 A (400–480 V) |
| Power supply | 10 kW |
| Air pressure | 6 bar (600 kPa) *) | 87 psi *) |
| Air consumption | 20 l/min *) |
| Oxygen | 2–5 bar (200–500 kPa *) | 29–72 psi * |
| Propane | Max. 2 bar * | 29 psi * |
| Hydraulic pressure | Max. 120 bar | 1740 psi |
| Flanging range | 21,3–219 mm | .840”–8.625” OD |
| Chamfering | 21,3–219,1 mm | .840”–8.625” OD |
| Expansion | Copper: 60–219,1 mm | 2.375”–8.625” OD |
| Machine dimensions | 1 700 x 1 120 x 1 370 mm | 67'' x 44'' x 54'' (L x W x H) |
| Package dimensions | 1 700 x 1 120 x 1 370 mm | 67'' x 44'' x 54'' (L x W x H) |
| Net weight | 2,700 kg | 5,952 lbs. |
| Gross weight | 3,200 kg | 7,055 lbs. (in wooden case) |
*) Required only with hot forming system
Note! The above values are intended as a guidance only.
