Typically T-DRILL systems are used in producing tubular components within air conditioning/refrigeration, heat pumps, heat recovery, heat exchangers, and solar panels manufacturing.
TUBE FABRICATION FOR THE HVACR APPLICATIONS

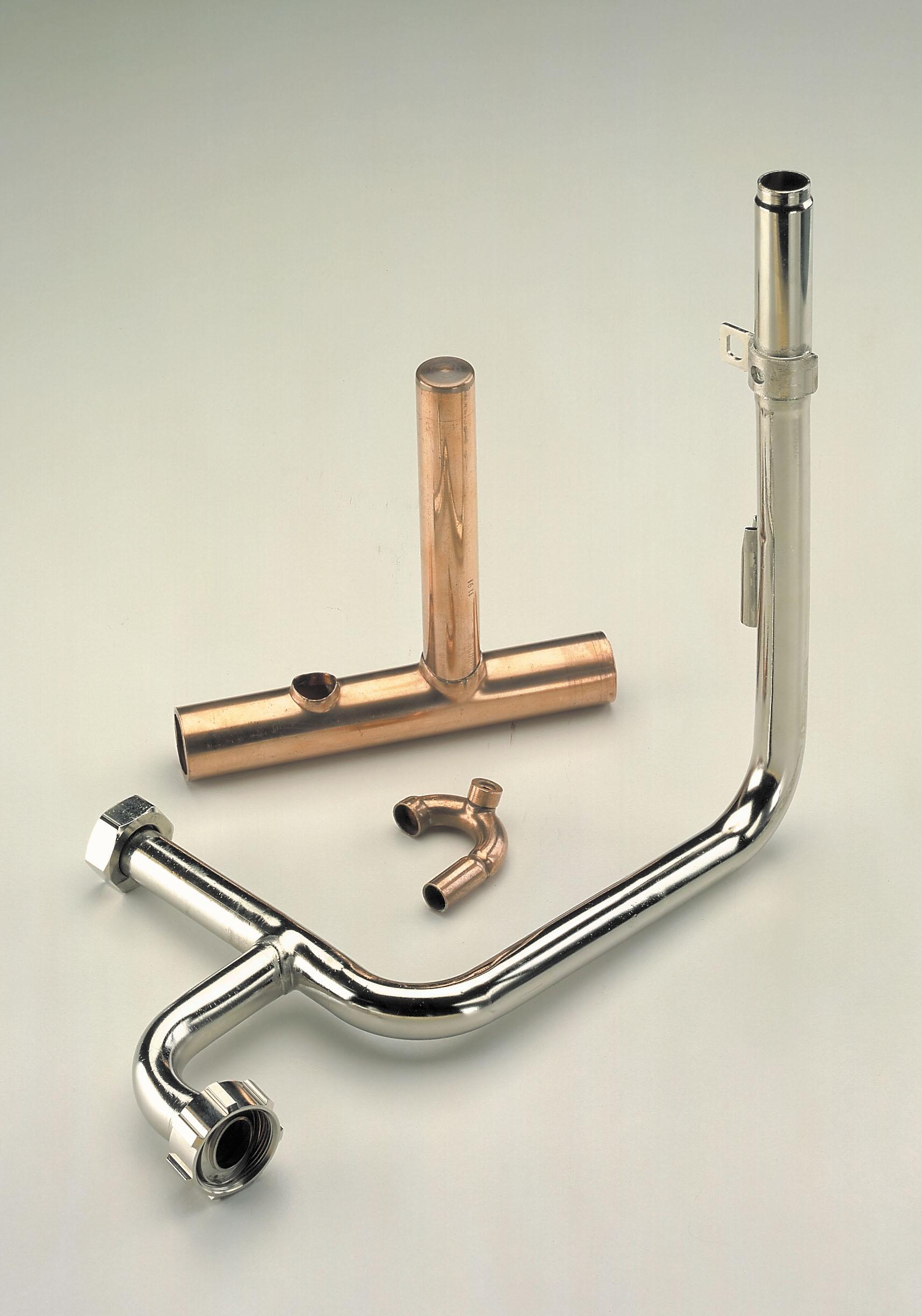

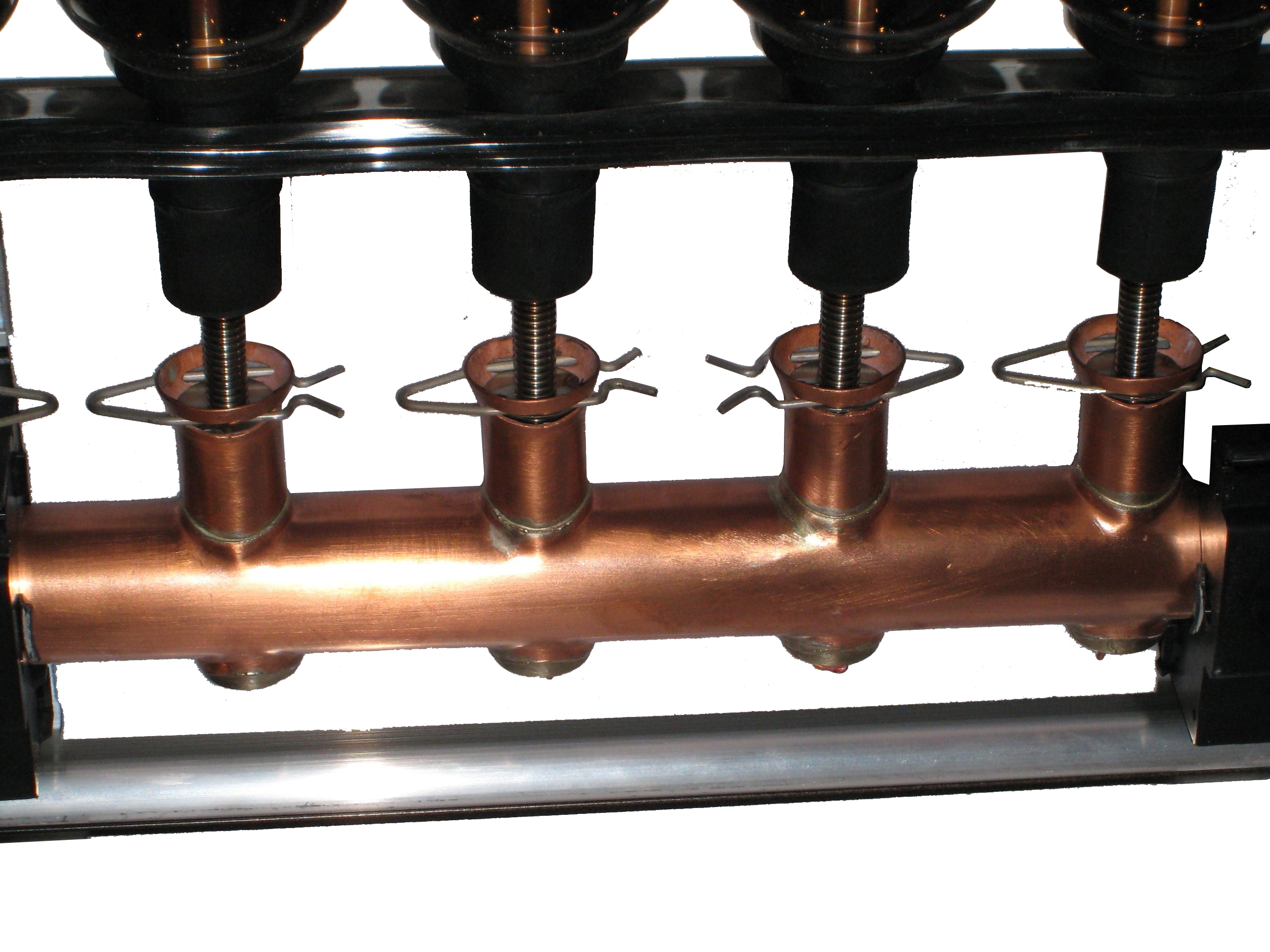

Air conditioning manufactures use our tube cut-off line, as well as T-DRILL branching system in the production of heat exchanger manifolds and heat recovery systems. The components that require tube end closing can be manufactured with Tube End Spinners thus saving money on end caps and labor costs.
Tube cutting in water heaters and boilers can be made by TCC-28 Cutting Machine, tube end closing by the SPM-115 Spinning Machine, and tube branching by S-56 Collaring Machine. The same can be applied to the manufacturing of heat pumps.

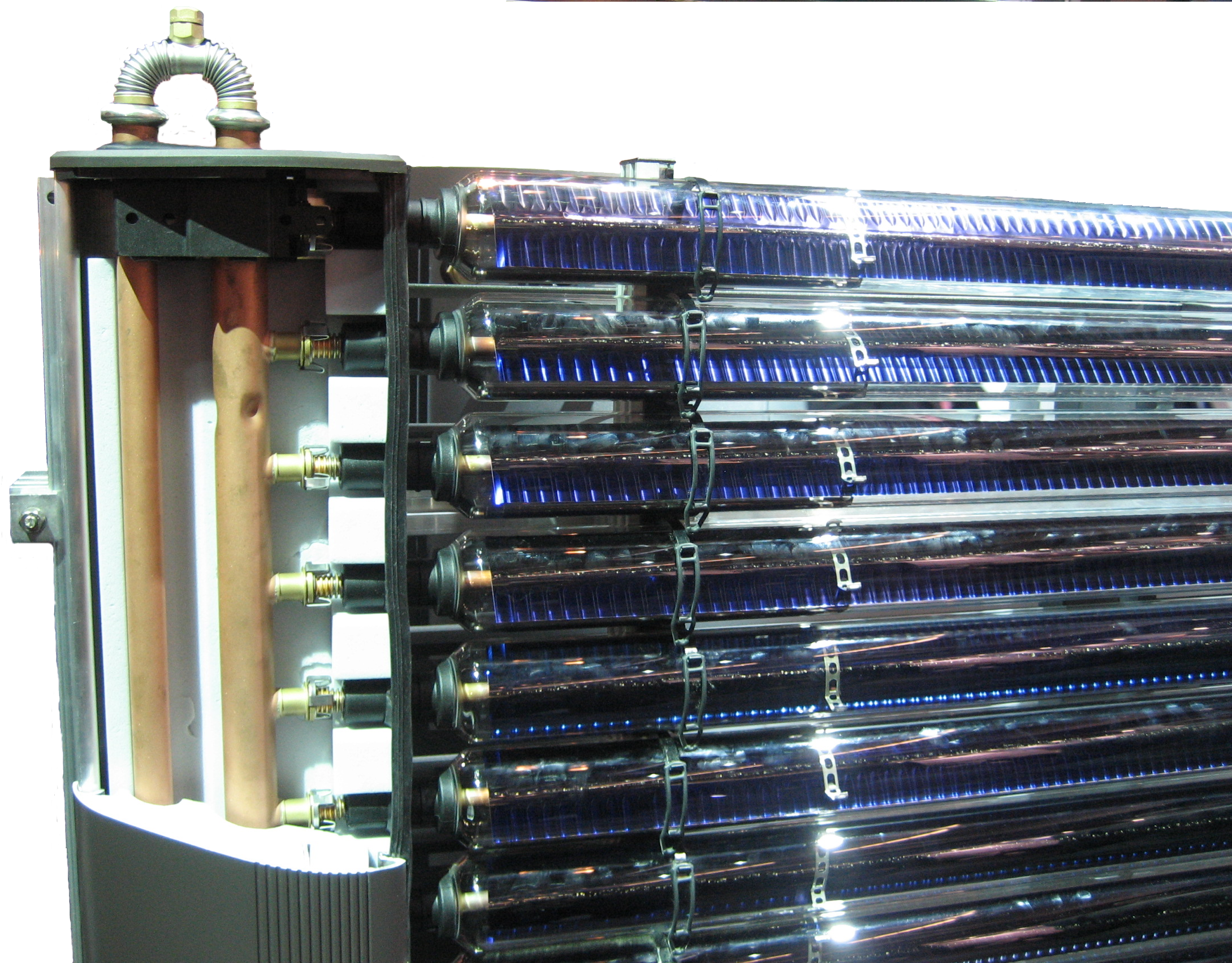

In the manufacturing of Flat plate solar collectors and evacuated tube solar collectors several T-DRILL types of machinery are used. Both types of collectors may utilize the S-56 MFT or S-56 MultiFlex Tube Collaring Machines and Tube End Spinner machinery as well as our high-speed Tube Cut-Off machines.
S-56 MultiFlex Collaring Machine

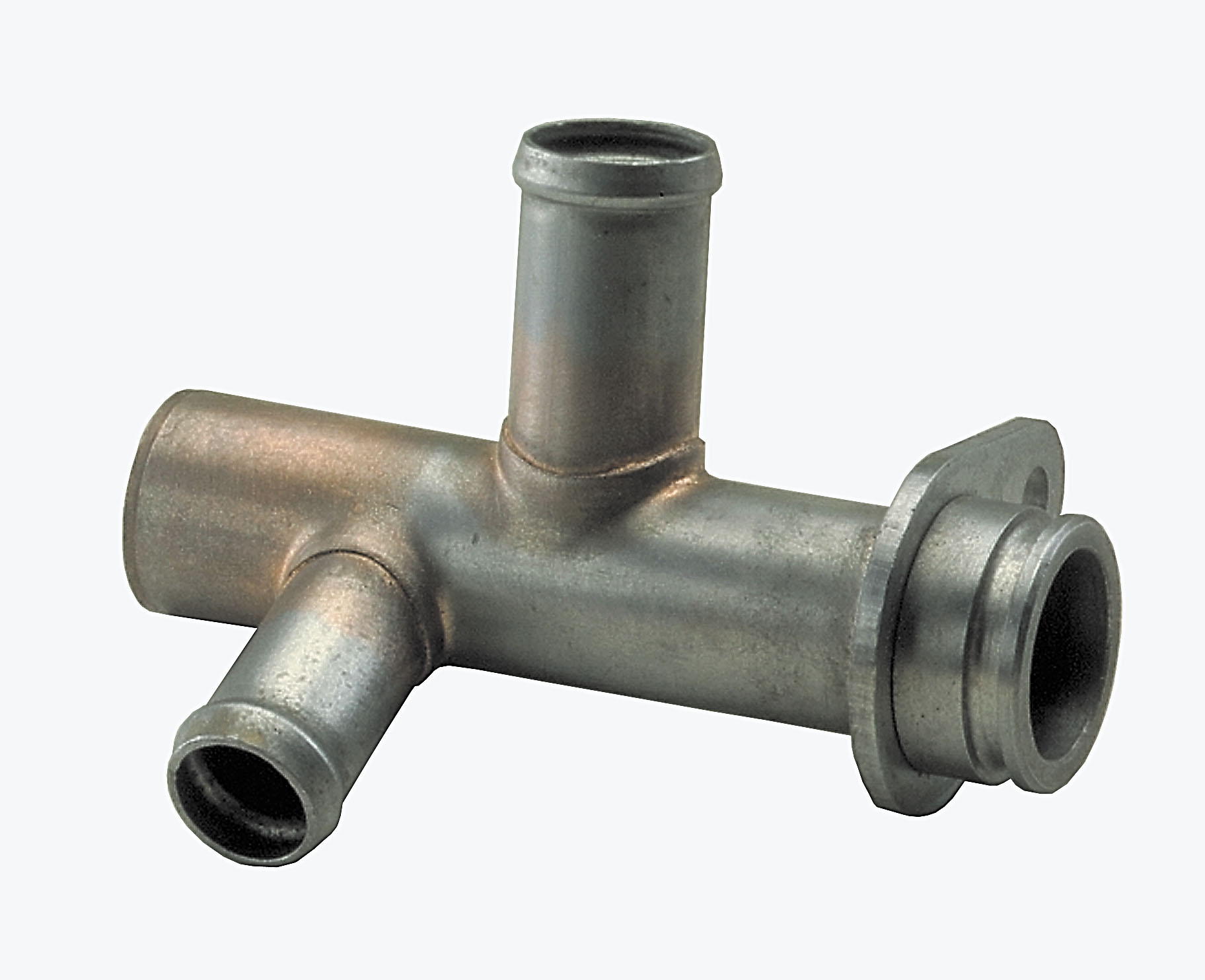

T-DRILL S-56 MultiFlex is a highly effective automatic multi-unit collaring machine for producing T-outlets for brazed and welded joints. The machine is designed to meet your specific collaring needs with up to three tool units.
SPM-115 Tube End Spinner
The fully automatic servo-controlled tube end spinning machine T-DRILL SPM-115 is designed for flat closing of copper and brass tubes. The machine has a fast cycle time, as the typical process time is only ~ 20–45 seconds depending on tube specification.
