TCC-45 EF8
Pipe diameters: Ø6–25,4 mm | 0.236” – 1″
Pipe material: Aluminium, Copper, Stainless steel, Steel
Machine type: Industrial machines
Process: Cutting, End forming (Max. 8 End forming hits)

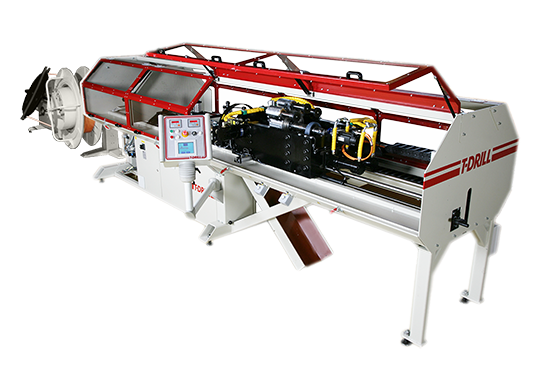

TCC-45 EF8 CUTTING MACHINE WITH IN-LINE END FORMING
The TCC-45 EF8 is a heavy duty chipless tube cutting station with integrated hydraulic endforming.
The TCC-45 EF8 has been designed for automatic chipless rotary cutting, grooving and endforming. All three operations are made simultaneously, which eliminates tube handling from cut-off machine to stand alone endformer. This increases productivity and improves accuracy and quality. The system can be programmed for long, fully unmanned production batches.
The machine is equipped with six forming stations capable of producing most standard forms with single tooling set-up: beads, O-ring beads, flares, hose couplings, expansion, reduction, etc.
TECHNICAL DETAILS
| Tube material | Copper, Aluminium, Steel |
| Max diameter of the tube to be cut | Copper, aluminum: Ø22 mm | Ø 0.866’ Steel: Ø12,5 mm | Ø 0.5’’ |
| Diameter of the tube to be cut and endformed | Copper, aluminum: Ø6–22 mm | Ø0.236’’ - 0.866 Steel: Ø6–10 mm | Ø 0.236’’ - 0.393’’ |
| Diameter of the endformed shape | Max. Ø 30 mm | Ø 1.18'' |
| Wall thickness | Copper, aluminum: 0,4–1,5 mm | 0.02''- 0.06’’ Steel: 0,4–1 mm | 0.02'' - 0.04'' |
| Compressed air supply | 6 bar = 600 kPa | 87 psi |
| Air consumption | ~ 650 l/min |
| Power supply | 18 kW |
| Fuses max | 3x80 A (380-480V) 3x100 A (200-240V) |
| Supply voltage | 200-240 V / 50 Hz /60 Hz, 3-phase 400-480 V / 50 Hz /60 Hz, 3-phase |
Note! The above values are intended as a guidance only.
