TBC-115
Collaring range: Ø17 – 114.3 mm | 3/8” – 4”
Run tube sizes: Ø21,3 – 114,3 mm | 1⁄2 – 4”
Pipe material: Steel, Stainless steel, Aluminium, Copper, Copper-Nickel
Machine type: Industrial machines
Process: Collaring

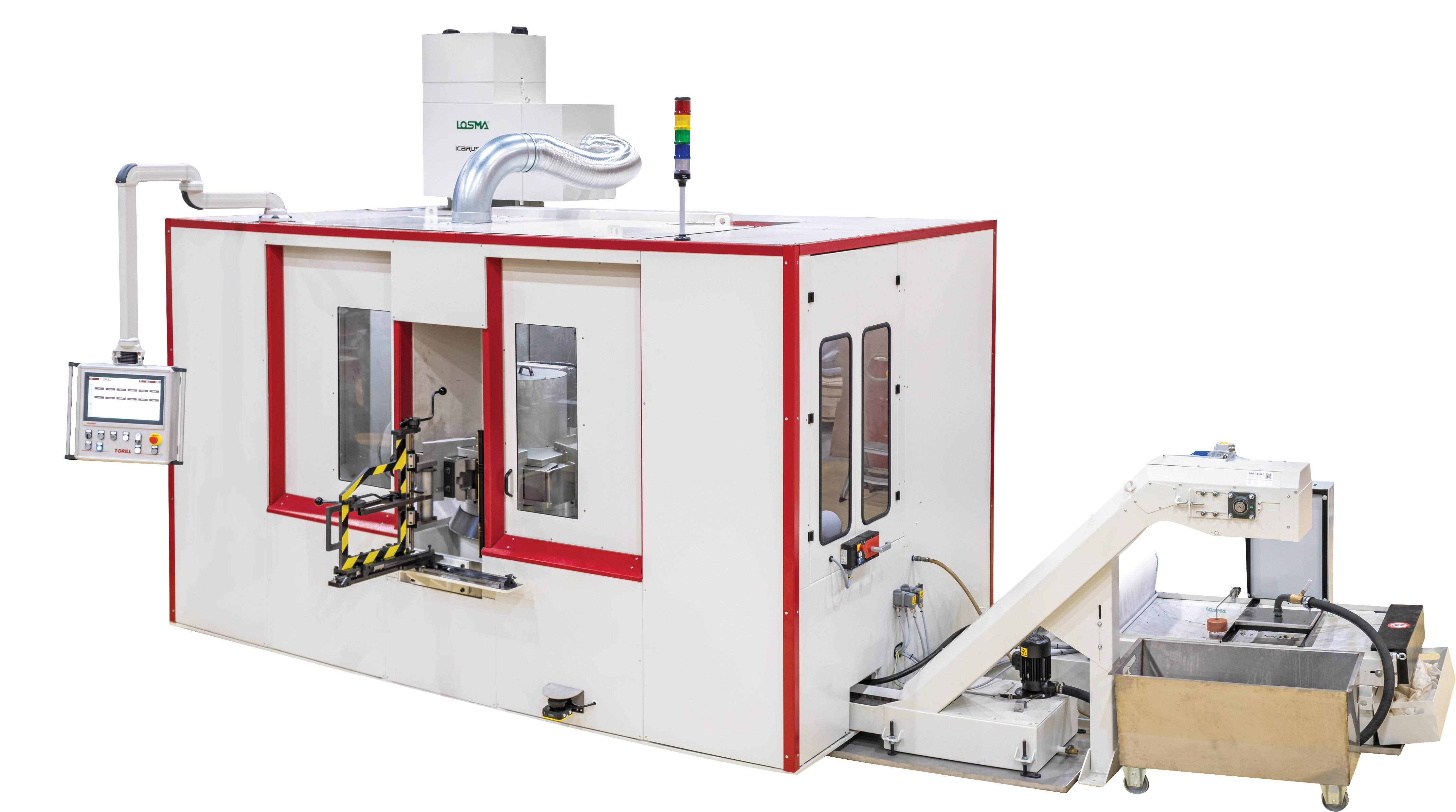

TBC-115 TUBE BRANCHING CENTER

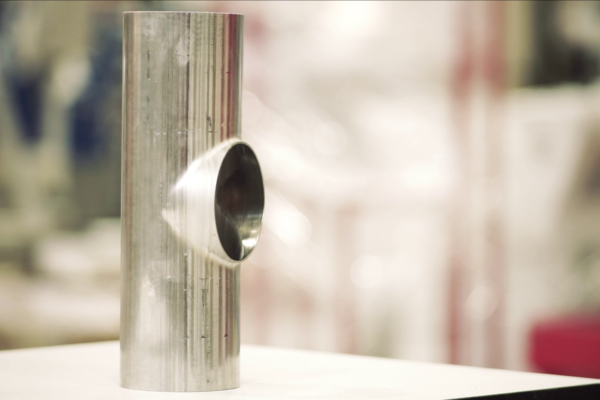

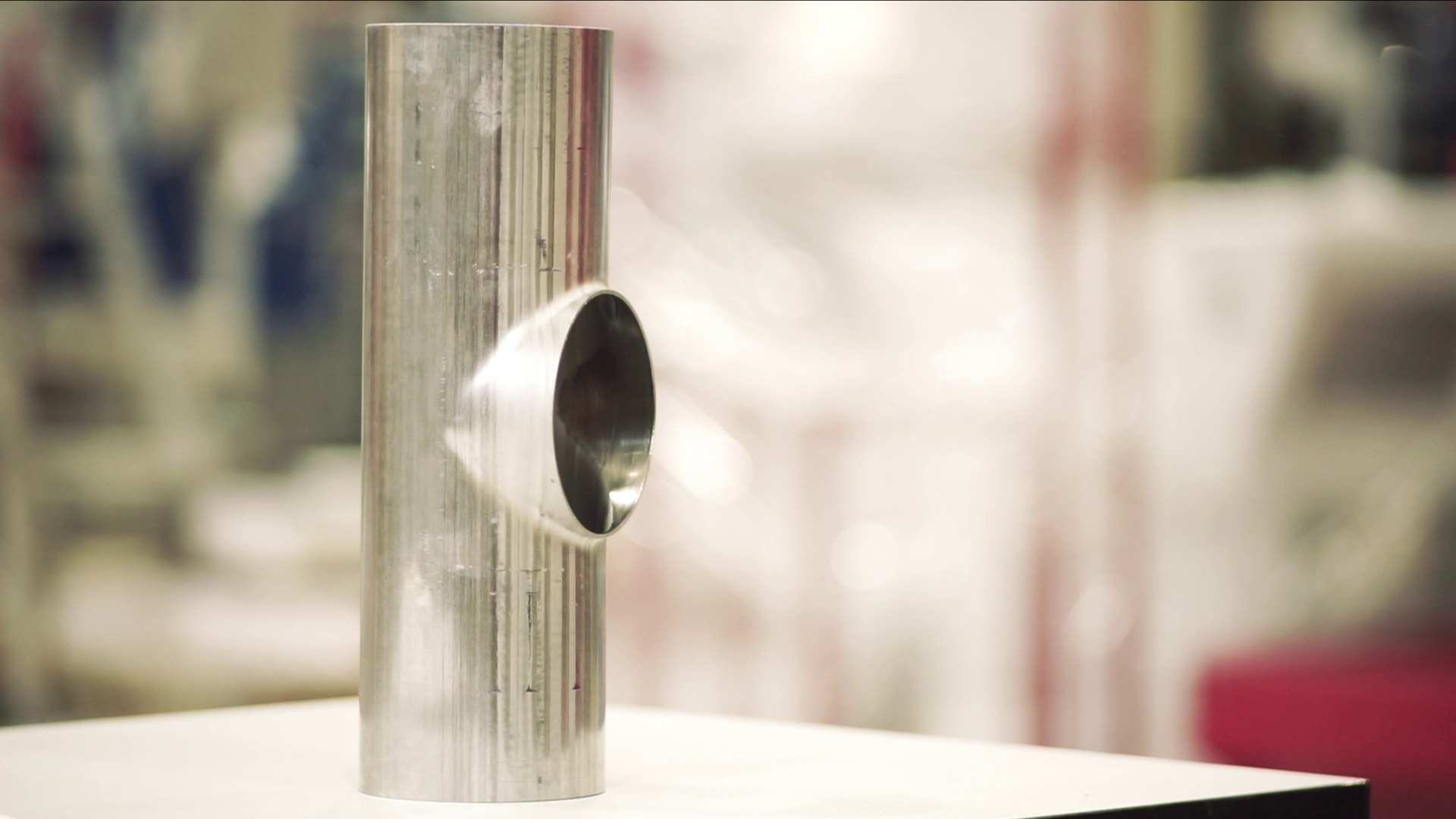

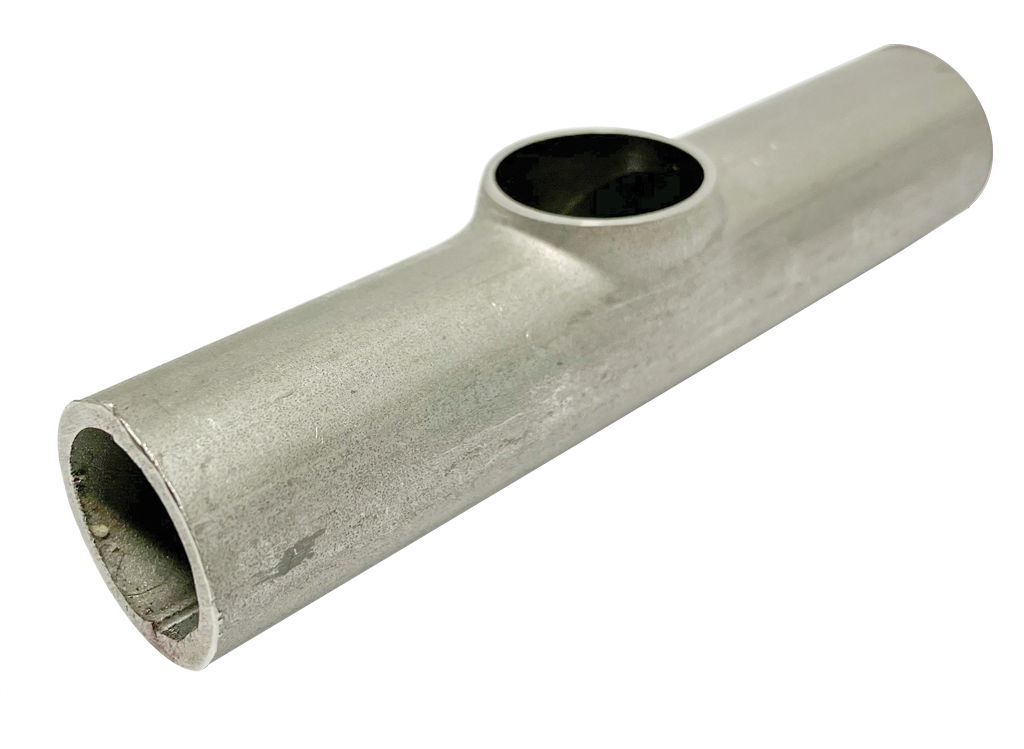

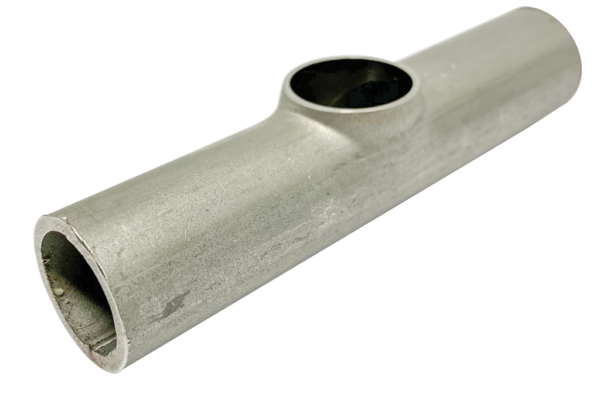

Completely new Tube Branching Center TBC-115 for fastest T-DRILL T-fitting manufacturing ever, up to 160 T-fittings per hour.

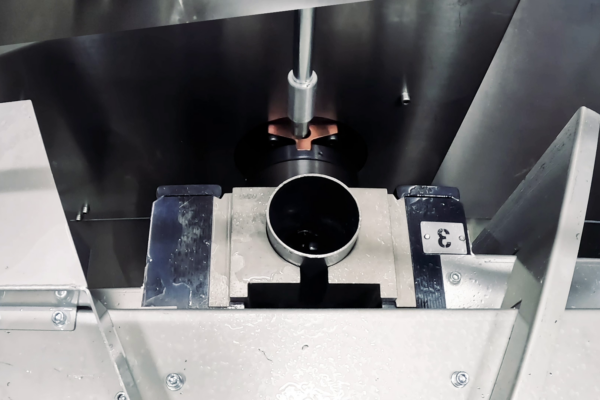

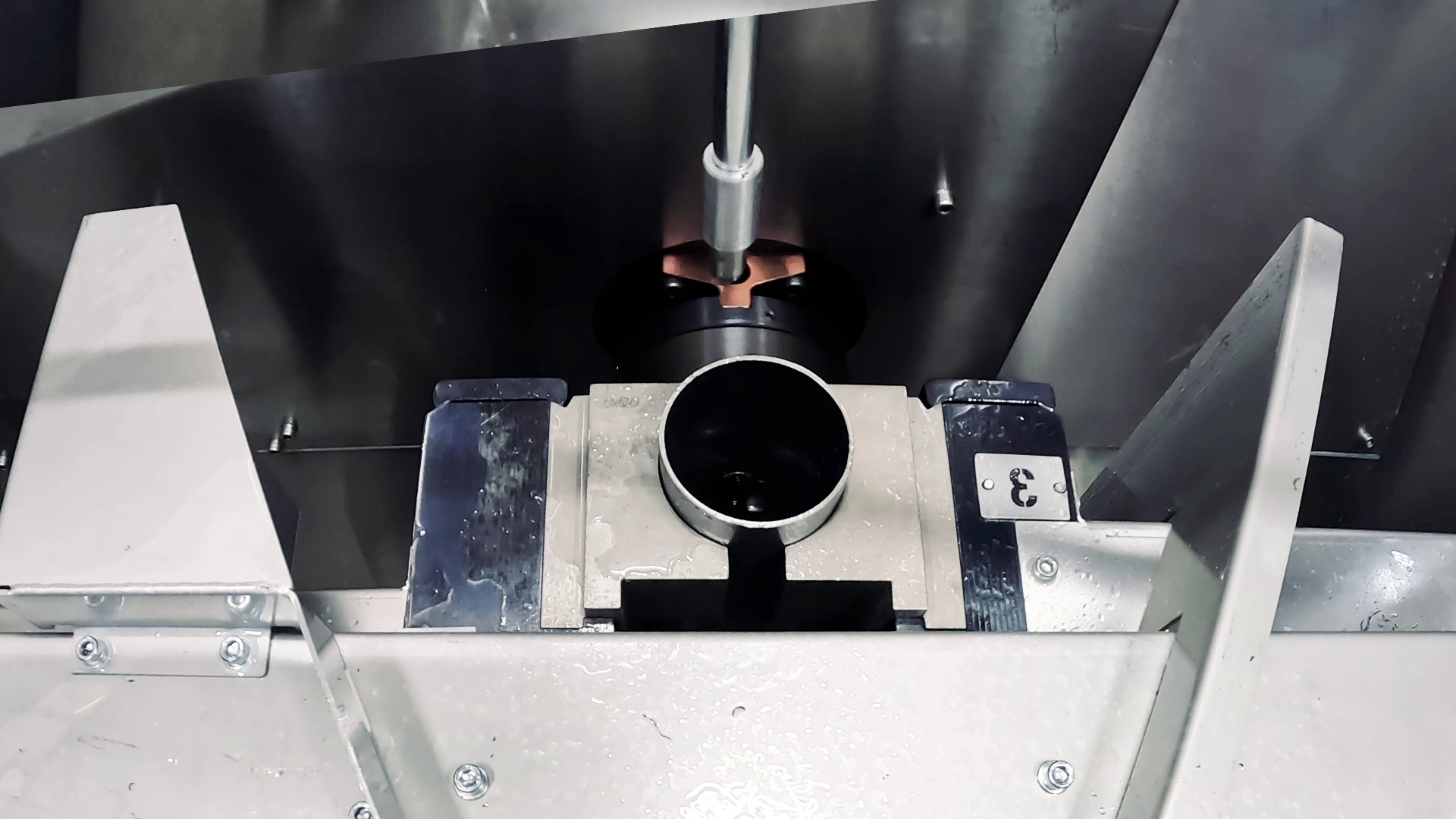

TBC-115 has a turntable with three machining units, which allow the three steps of the process to be done simultaneously:
- Pilot hole milling

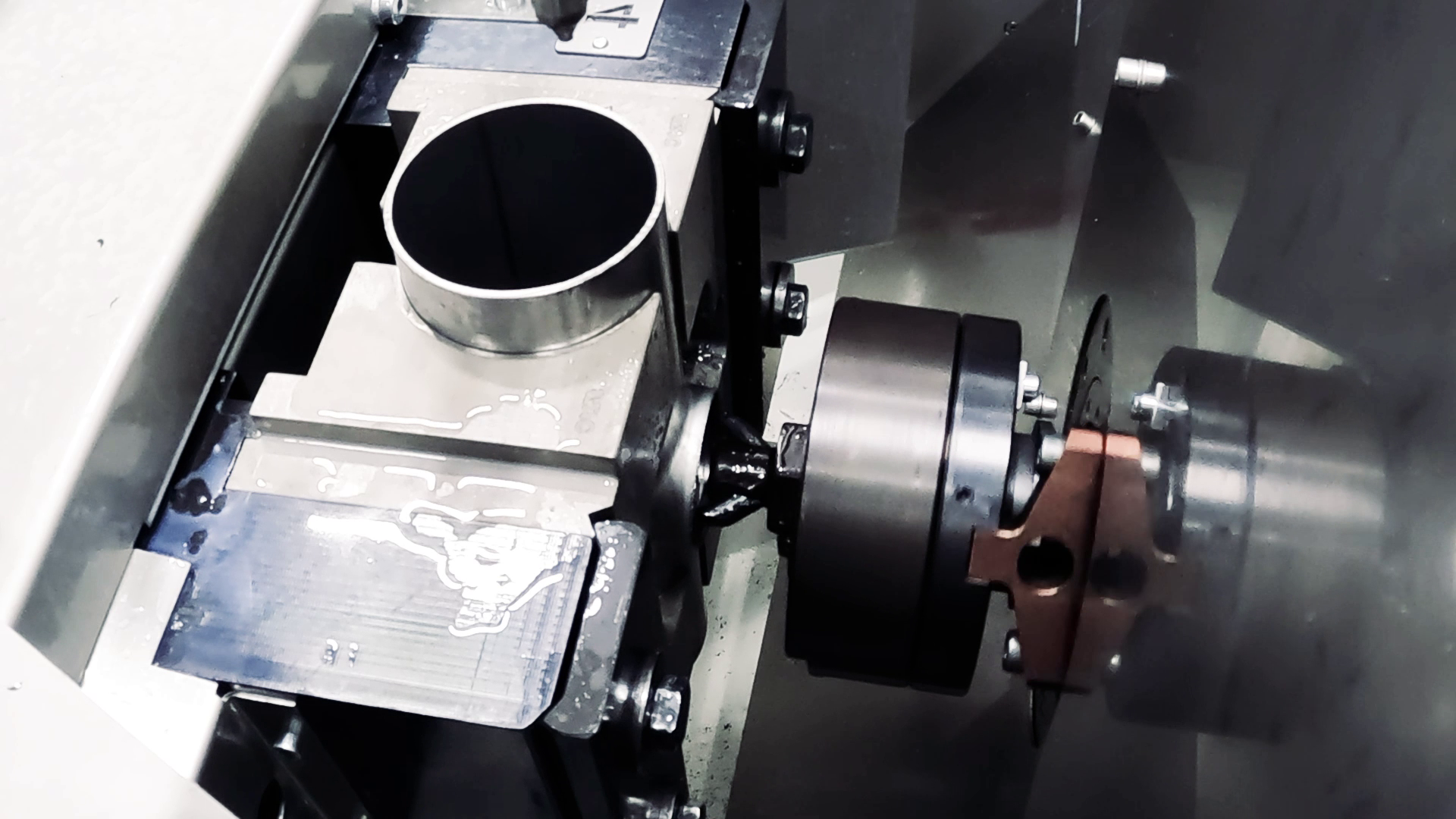

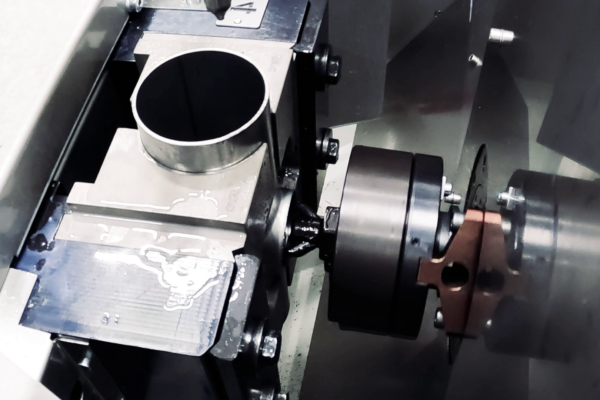

- Collaring
- Trimming
Automatic adjustment of collaring tools according to collar size within the adjustment range of each collaring head. Emulsion lubrication for milling and trimming process results in a clean tube without chips stuck to it. TBC-115 is Industry 4.0 and online cloud system TD-Vault ready.
TECHNICAL DETAILS
| Collar sizes | Ø17 – 114.3 mm | 3/8” – 4” |
| Run tube sizes | Ø21,3 – 114,3 mm | 1⁄2 – 4” |
| Rated power | 15 kW |
| Pipe material | Steel, Stainless steel, Aluminium, Copper, Copper-Nickel |
Note! The above values are intended as a guidance only.
