T-54c
Collaring range: Ø8–54 mm | NS ½” – 2”
Run tube sizes: Ø15–108 (163,8 mm) | NS ½” – 4” (6″)
Pipe material: Copper, Copper / Nickel
Machine type: Portable tools

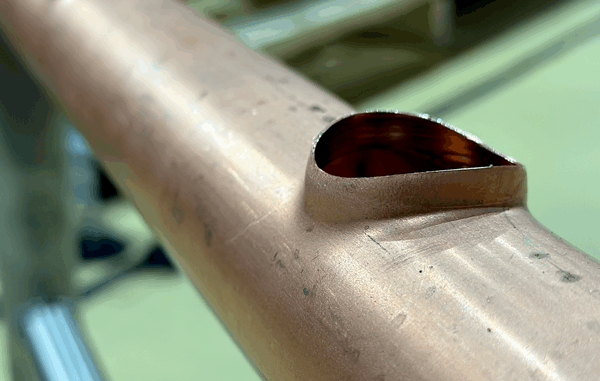

Process: Collaring
Work cycle time is only 15–60 seconds
Ideal for plumbing, HVACR, and special applications
Battery-operated – perfect for on-site applications

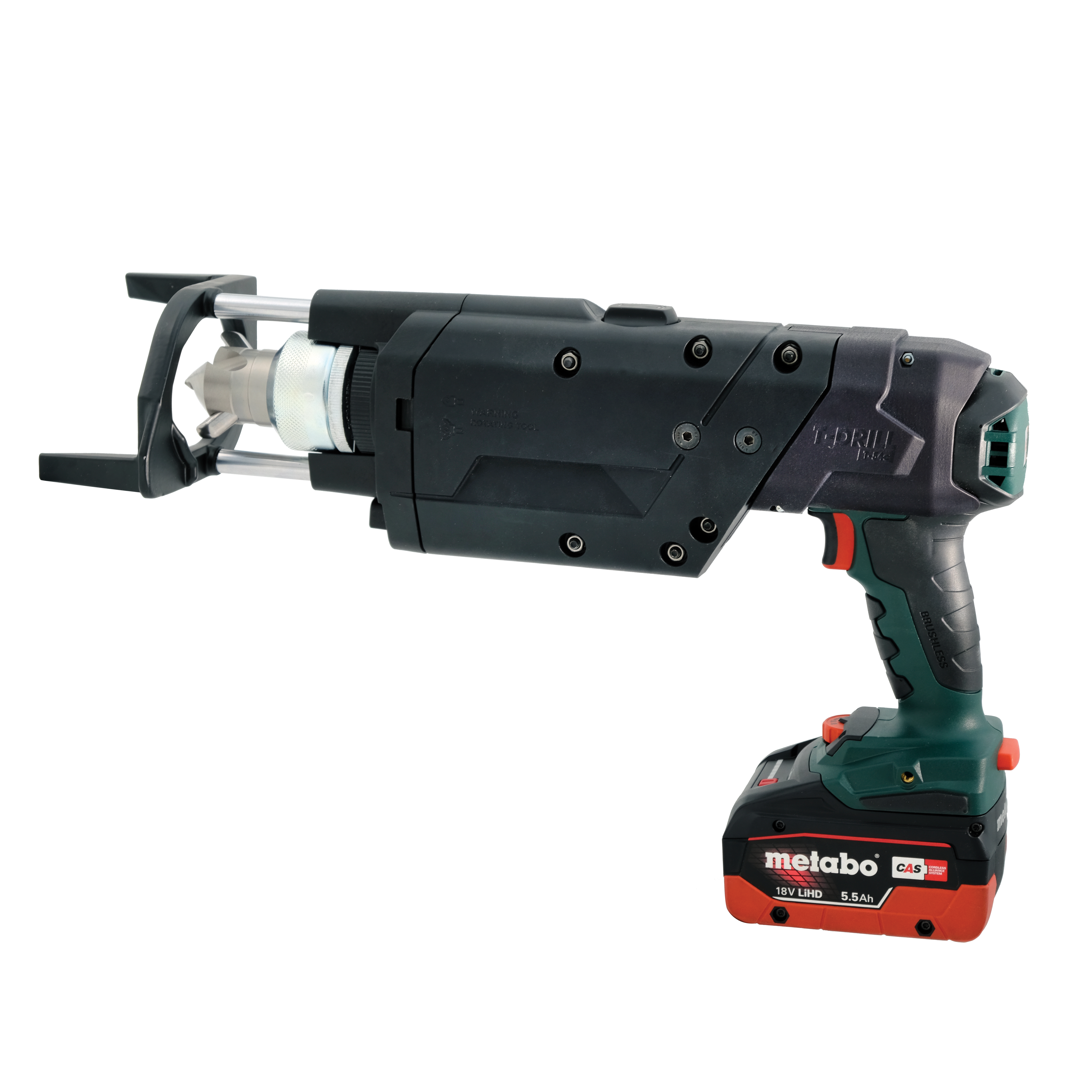

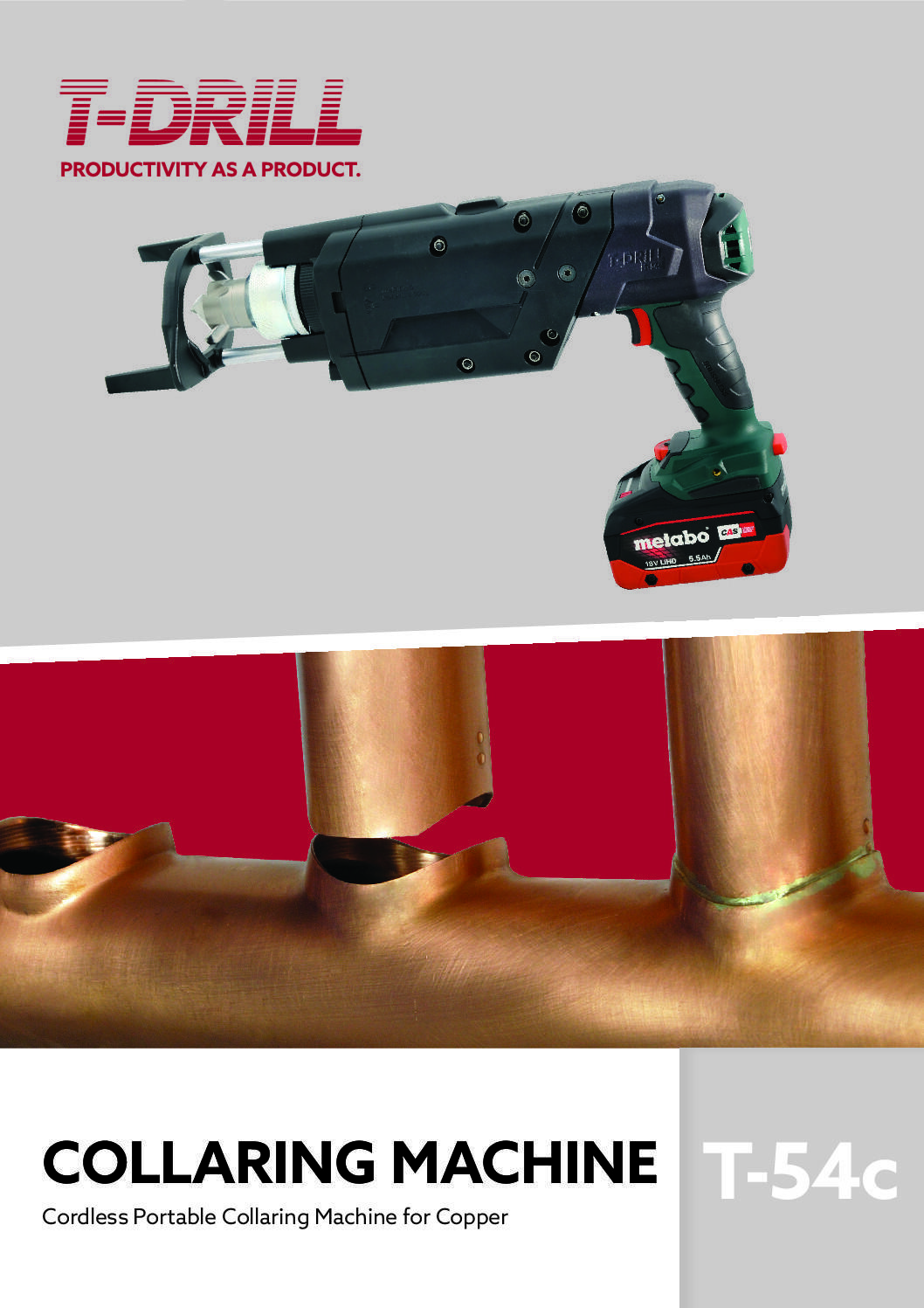

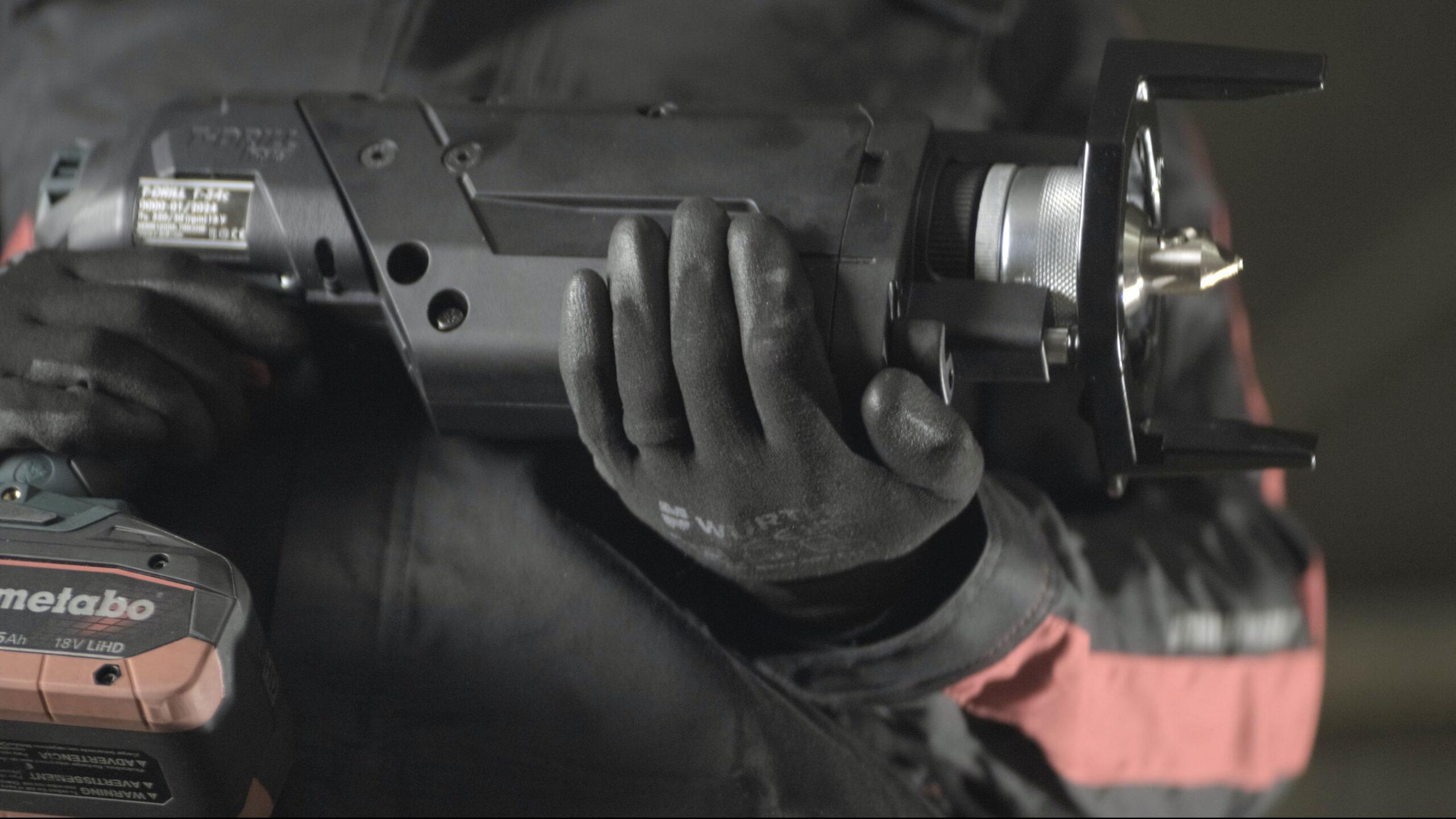

T-54c CORDLESS PORTABLE COLLARING MACHINE FOR COPPER
Introducing the battery-operated, portable collaring machine, T-DRILL T-54c, a powerful member of the T-DRILL tool family of copper tubes. Unleash the power of efficiency and profitability with this cordless collaring machine to redefine your workflow.
- Capacity of up to 54 mm (NS 2″) out of run tubes up to 108 mm (NS 4″) (with optional retrofit kit even up to 168.3 mm run tubes)
- Battery-operated for unparalleled portability
- Ideal for plumbing, HVACR, and special applications
- Compared to the installed cost of a tee fitting, the T-DRILL joint can improve your profit by up to 70%
TECHNICAL DETAILS
| Tee diameter | 8–54 mm | NS ½” – 2” |
| Run tube diameter | 15–108 (163,8 mm) | NS ½” – 4” (6″) |
| Max. wall thickness | See capacity chart | K, L, M tubing |
| Material | Copper |
| Weight of the unit | 5,22 kg | 11,51 lbs |
Note! The above values are intended as a guidance only.
