S-80
Collaring range: Ø12–101,6 mm | O.D. 1/8–3 1/2“
Run tube sizes: Max. Ø114,3 mm | SCH 10 | 4“
Pipe material: Aluminum, Brass, Copper, Copper / Nickel, Stainless steel, Steel
Machine type: Industrial machines
Process: Collaring
HIGH-SPEED FULLY AUTOMATIC COLLARING MACHINE S-80
The Collaring Machine S-80 with Automatic Tool Changer and Fully Servo Controlled Process is extremely fast and highly effective machine for both Stainless Steel and Copper pipes.
The S-80 machine has been developed to make collars between 10–101,6 mm (3/8–3 1/2“) faster than ever before, which makes it a perfect solution for high volume applications up to 114,3 mm (4″) pipes.
The S-80 has fully automatic, servo controlled collaring cycle:
- Pilot hole milling,
- Collar forming, and

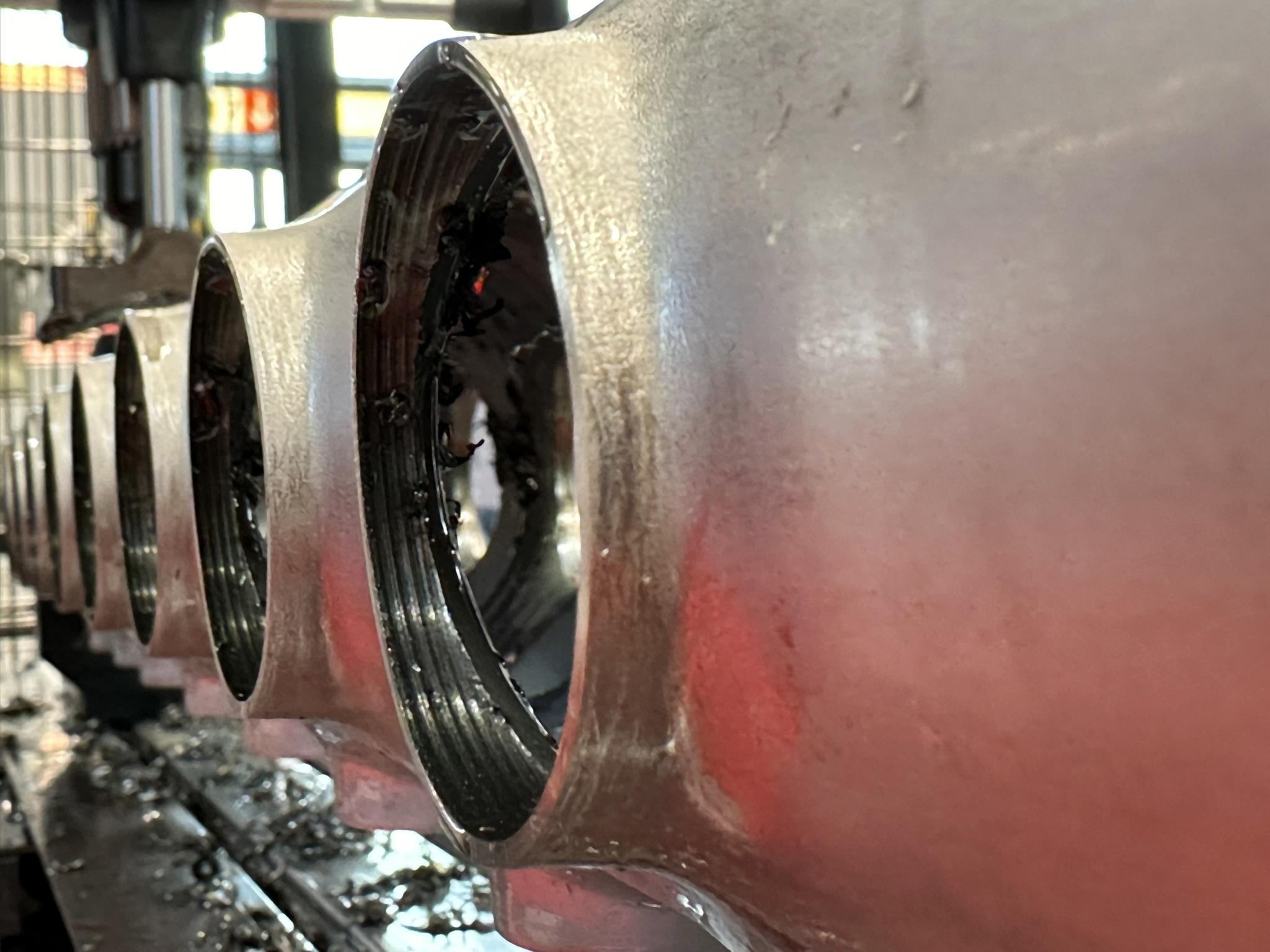

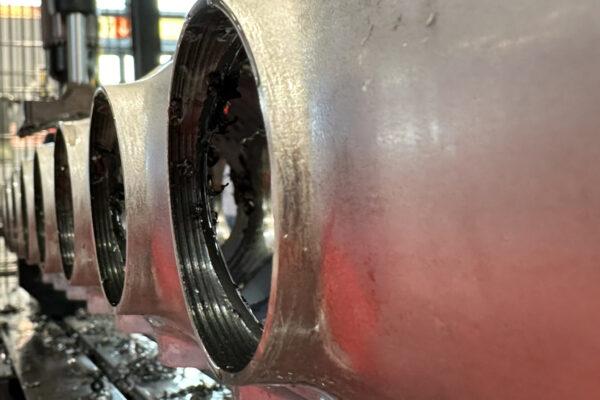

- Trimming for the collars to be welded.
The great advantage of the automatic tool changer is the possibility to make different collar diameters during this same automatic working cycle.
The modular design of the S-80 and many unique options allows us to meet a wide variety of different industry specific requirements and offer optimized tube and pipe manufacturing solutions – all to improve your productivity.
Take your productivity to the next level with our latest innovation!

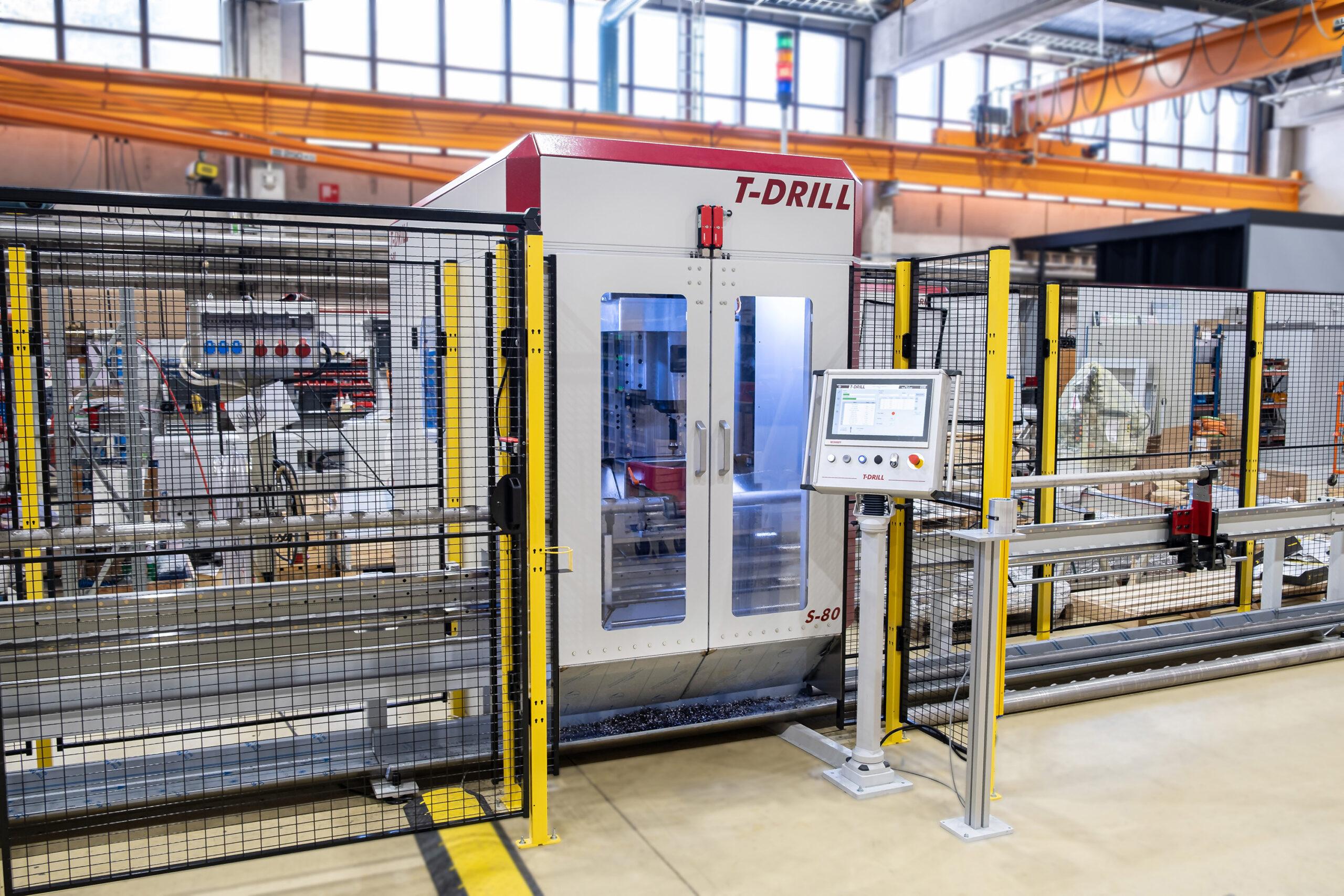

Collaring machine S-80 with AFT, automatic feeding table. This version is for tubes up to 6 meters long.
TECHNICAL DETAILS
| Collaring range, steel: | Ø12 – 101,6 mm | O.D. 1/8 – 3 1/2“ |
| Collaring range, copper and aluminum: | Ø6 – 104 mm |
| Max. run tube size | 114,3 mm | SCH 10 | 4″ |
| Rated power | 10 kW |
| Air supply | G3/8" |
| Air consumption | 150 Nl/min |
| Weight (basic unit) | 1,200 kg | 2650 Lbs |
| Noise level | 73dB(A) |
Note! The above values are intended as a guidance only.
