POWER NOTCHER PND-54
Operating range: Ø12–54 mm | ½–2 1⁄8“
Pipe material: Aluminum, Copper, Copper / Nickel
Machine type: Industrial machines / Portable tools
Process: End Forming
BRANCH TUBE END NOTCHER & DIMPLER POWER NOTCHER PND-54

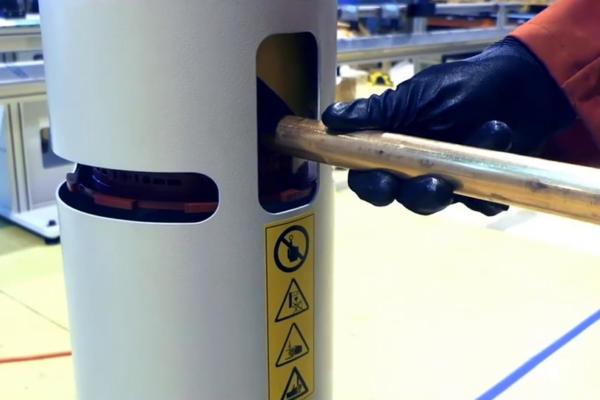

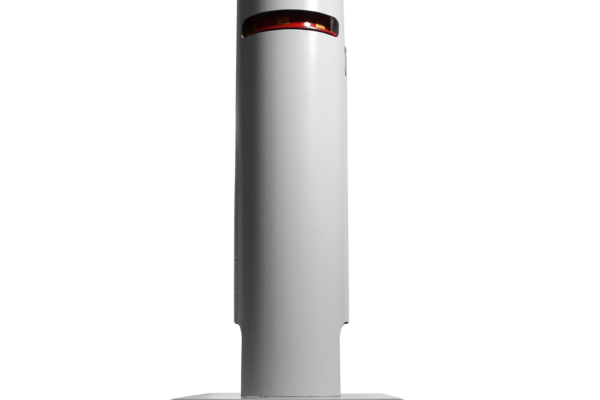

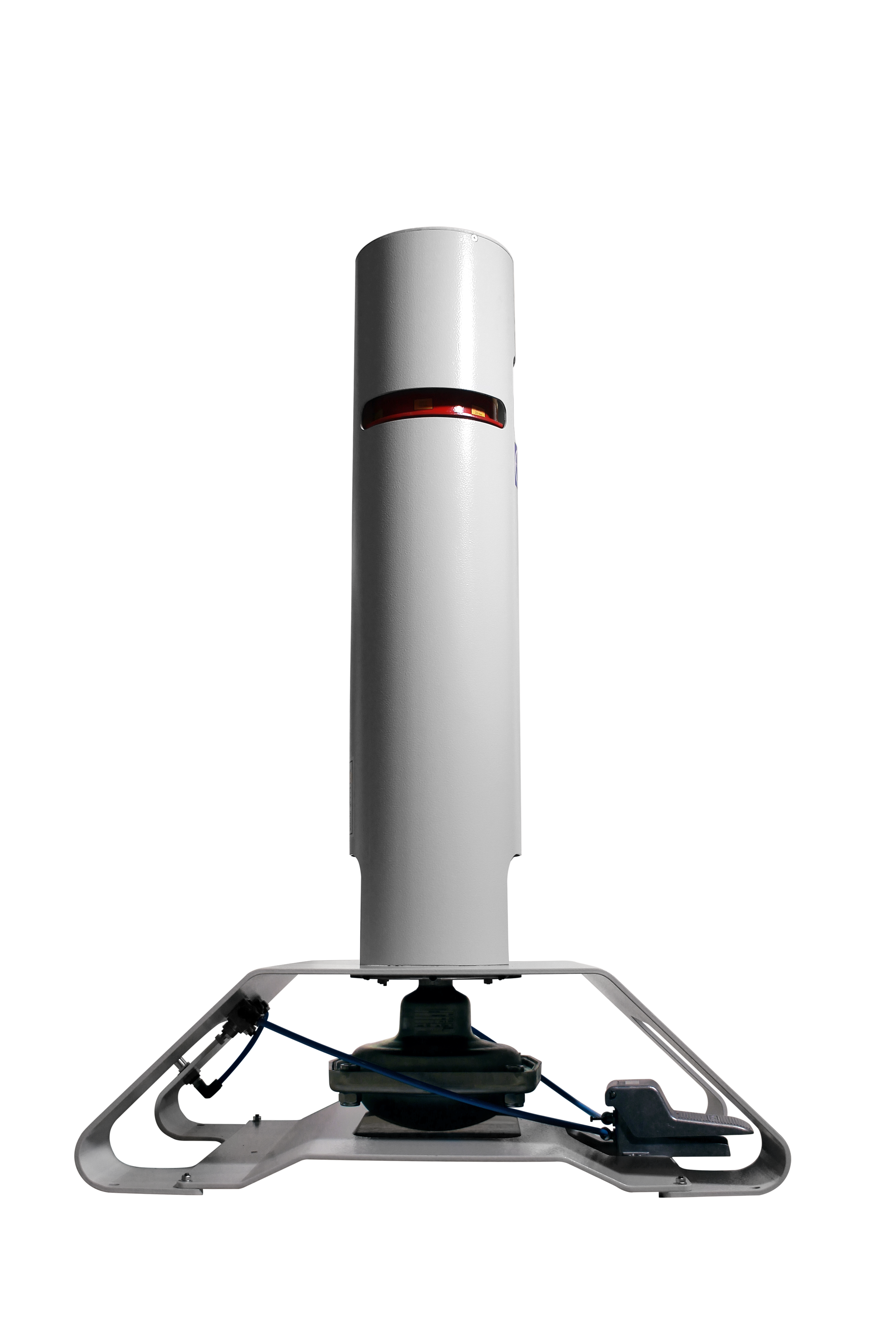

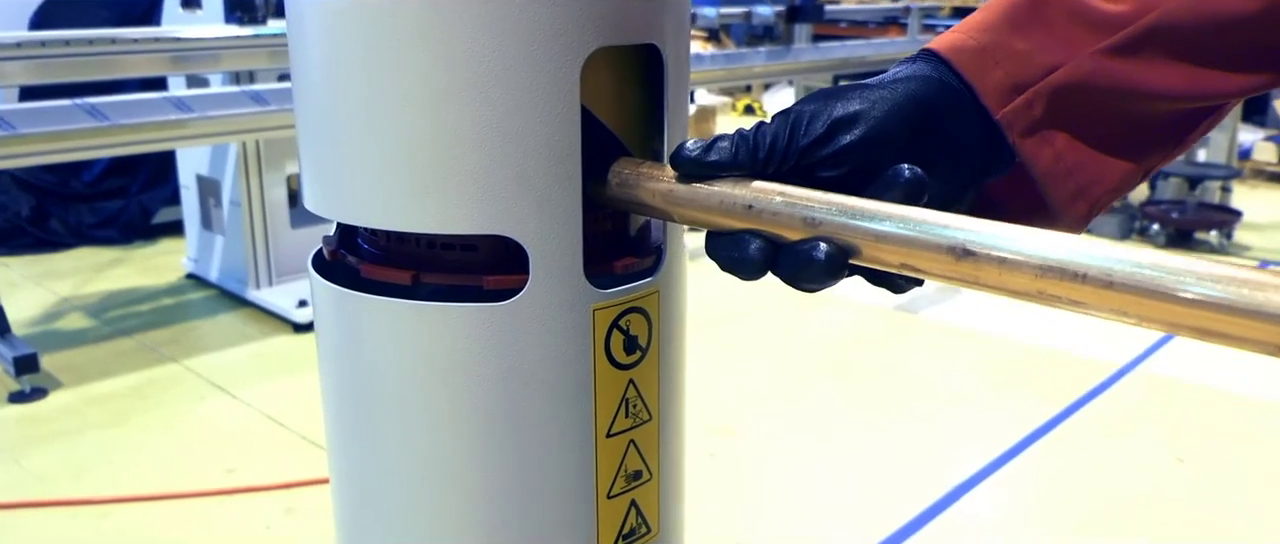

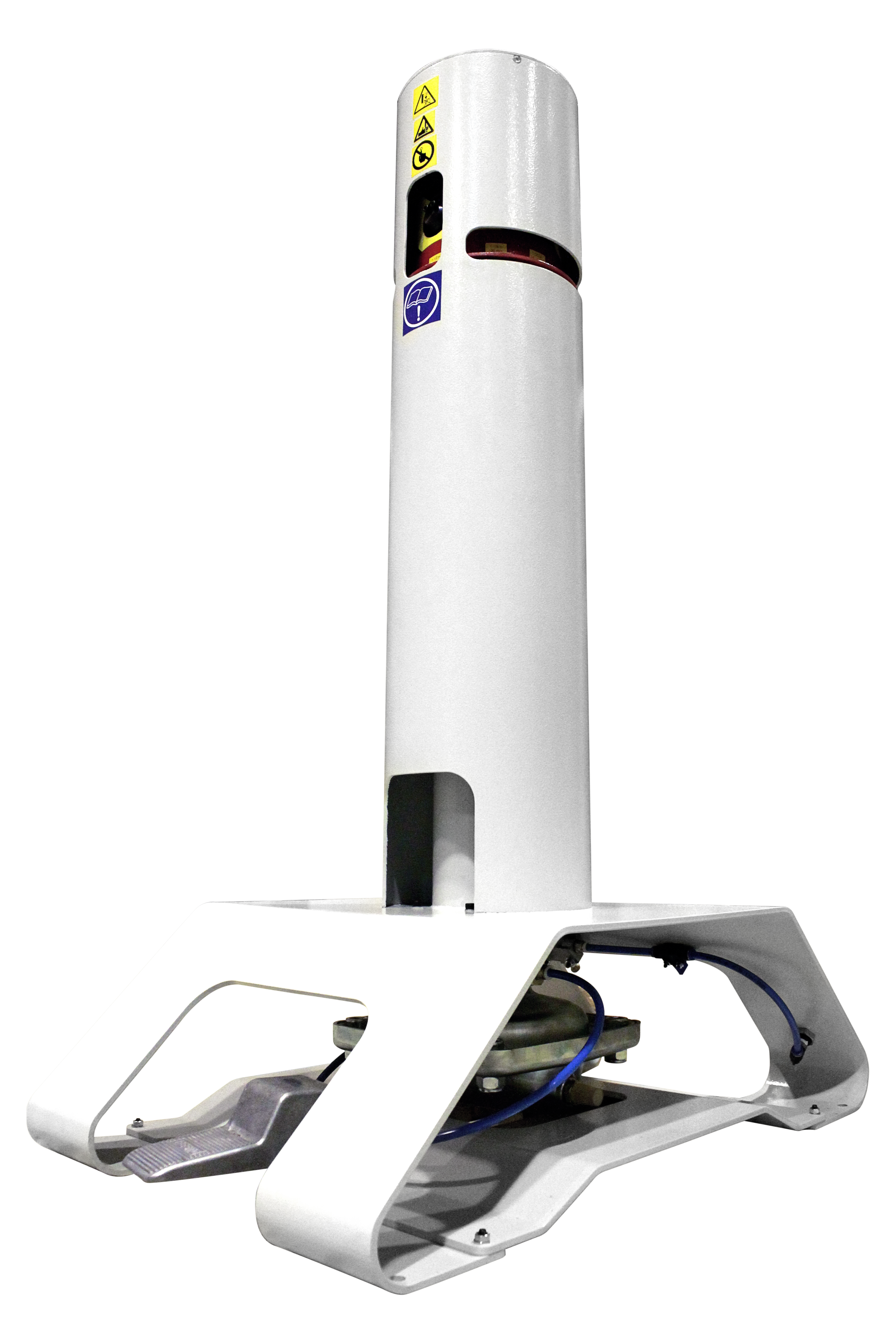

The Power Notcher PND-54 is a device with pneumatic power source for cutting and dimpling the branched tube ends before insertion into the T-branch collar.

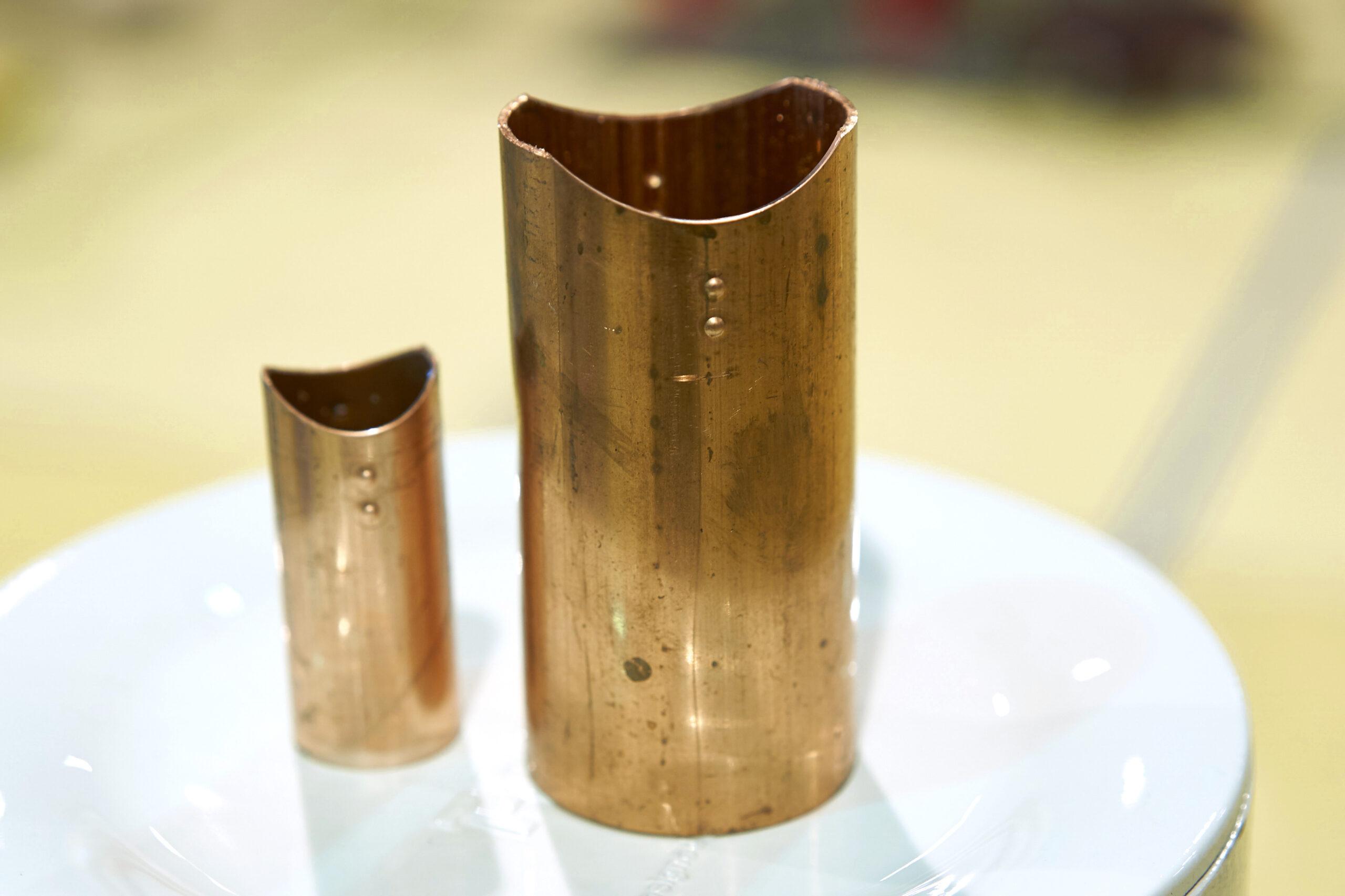

The PND-54 is a natural complement to the T-DRILL collaring (tee forming) system. It firsts cuts a half-moon shaped coupon from each side of the branch tube to provide unobstructed flow while simultaneously pressing in a dimple that rests on the rim of the tee that acts as a depth stop. A second dimple 6 mm higher acts as a point of inspection.
This saves a lot of assembly time and the result is an inspectable brazed joint with the best possible flow characteristics.
The Power Notcher PND-54 is suitable for branch tube sizes 12, 14–16, 18, 22, 28, 35, 42 & 54 mm and corresponding inch sizes: ½”, ¾”, 1”, 1 ¼”, 1 ½” & 2”.
TECHNICAL DETAILS
| Operating range | Ø12–54 mm | ½–2 1⁄8“ |
| Length of the unit | 750 mm / 30 in |
| Width of the unit | 500 mm / 20 in |
| Height of the unit | 1180 mm / 47 in |
| Weight of the unit | 72 kg / 159 lbs. |
| Compressed air supply | 600 kPa / 6 bar |
Note! The above values are intended as a guidance only.
