PLUS 115 CU
Collaring range: Ø54–115 mm | NS 2” – 4”
Run tube sizes: Ø54–206 mm | NS 2” – 8”
(When working with bigger sizes, please contact T-DRILL Sales)
Pipe material: Copper
Machine type: Portable tools
Process: Collaring

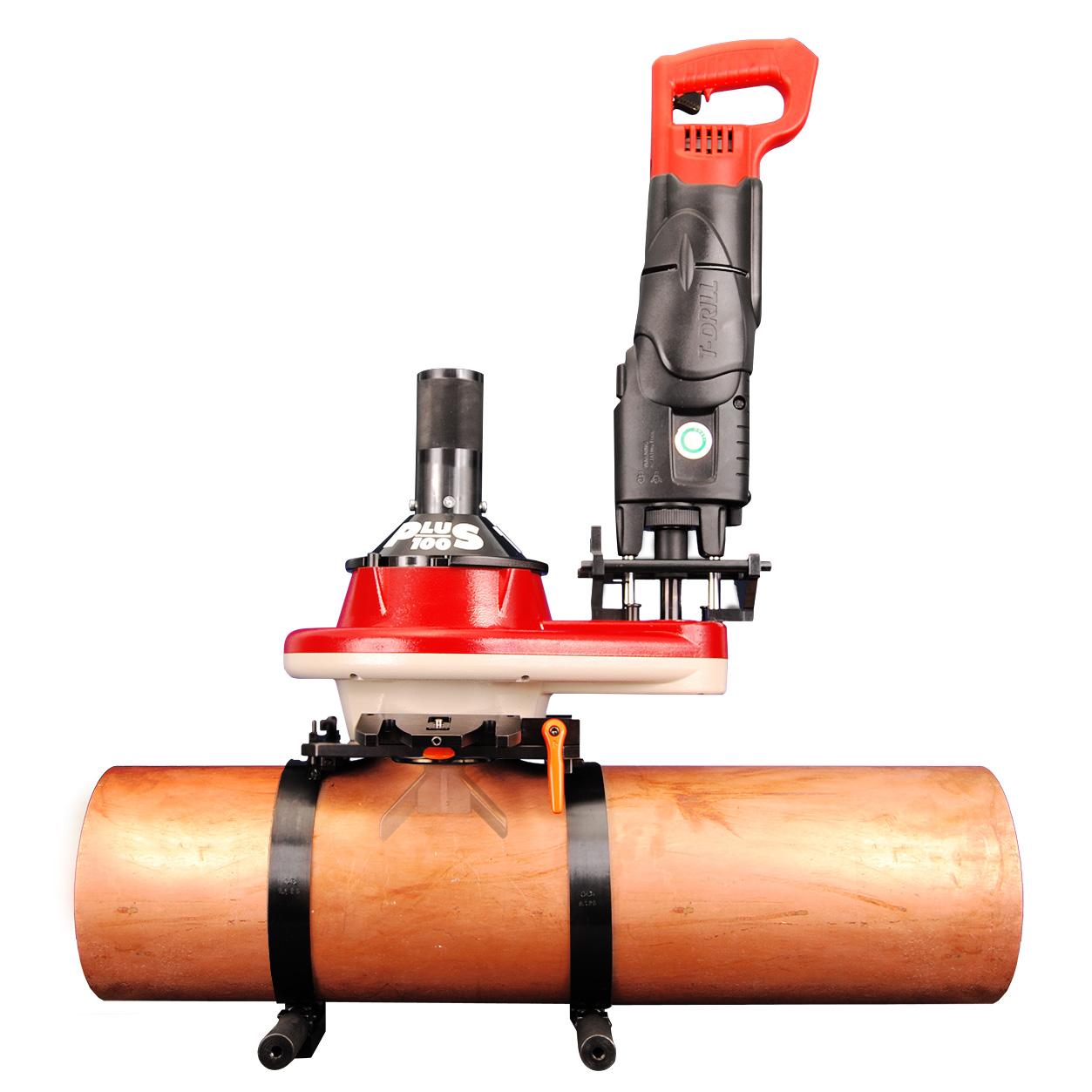

PLUS 115 CU PORTABLE COLLARING SYSTEM FOR COPPER TUBES
The PLUS 115 SS Collaring System is an effortless, capacity expanding attachment for the heavy duty T-54 Portable Collaring Machine. It forms 54–115 mm (NS 2″–4″) outlets on copper tubes up to 206 mm (NS 8″) in just a few minutes. By eliminating two brazed joints, the system minimizes costs and increases profit while offering improved quality, comparable to mechanically formed tee joints.
The ergonomically designed system minimizes the operator workload and is effortless to use. The powerful PLUS 115 SS is an ideal solution to be used both on the jobsite and in the fabrication shop.

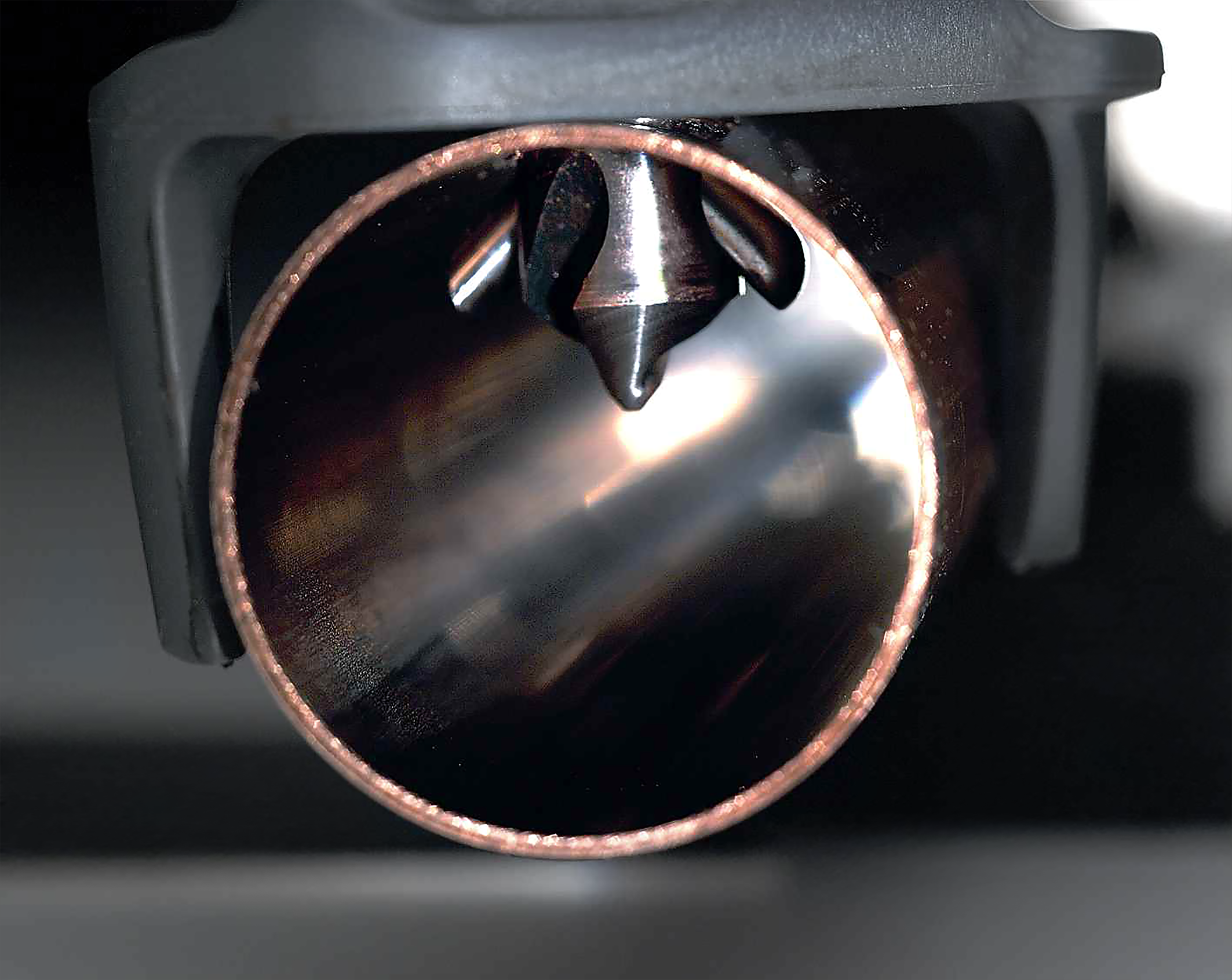

Heavy duty T-DRILL collaring heads with stepless adjustment ensure precise collar sizes ranging from 54–115 mm (NS 2”–4”)
