CYLINWELD
Welding range: ID Ø10 – 120 mm*
*Larger and smaller diameters possible case by case
Wall thickness: 0.6 – 3 mm*
*4 mm possible in some cases
Maximum length of branch tube: 200 mm
Pipe material: All materials suitable for TIG welding
Machine type: Industrial machines
Process: Welding
CYLINWELD WELDING MACHINE FOR DEMANDING CYLINDER INTERNAL WELDING

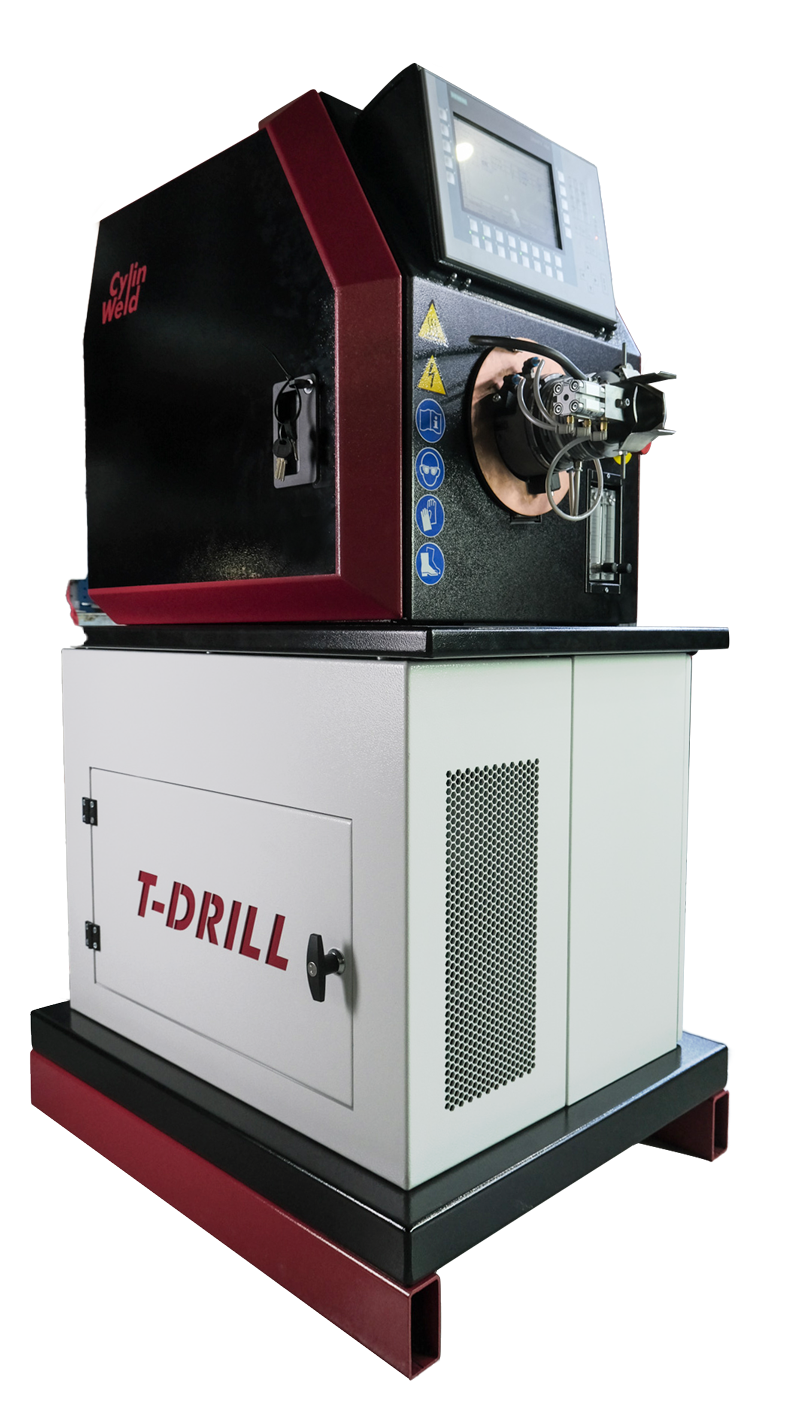

T-DRILL CylinWeld is an automated machine for demanding quality welding of tubular parts. CylinWeld works from the inside of the tube, resulting in stable, high-quality seams every time.
Thanks to the internal welding, CylinWeld produces consistently perfect and smooth seams, making it ideal for industries where the inner surface quality and flow characteristics are crucial.

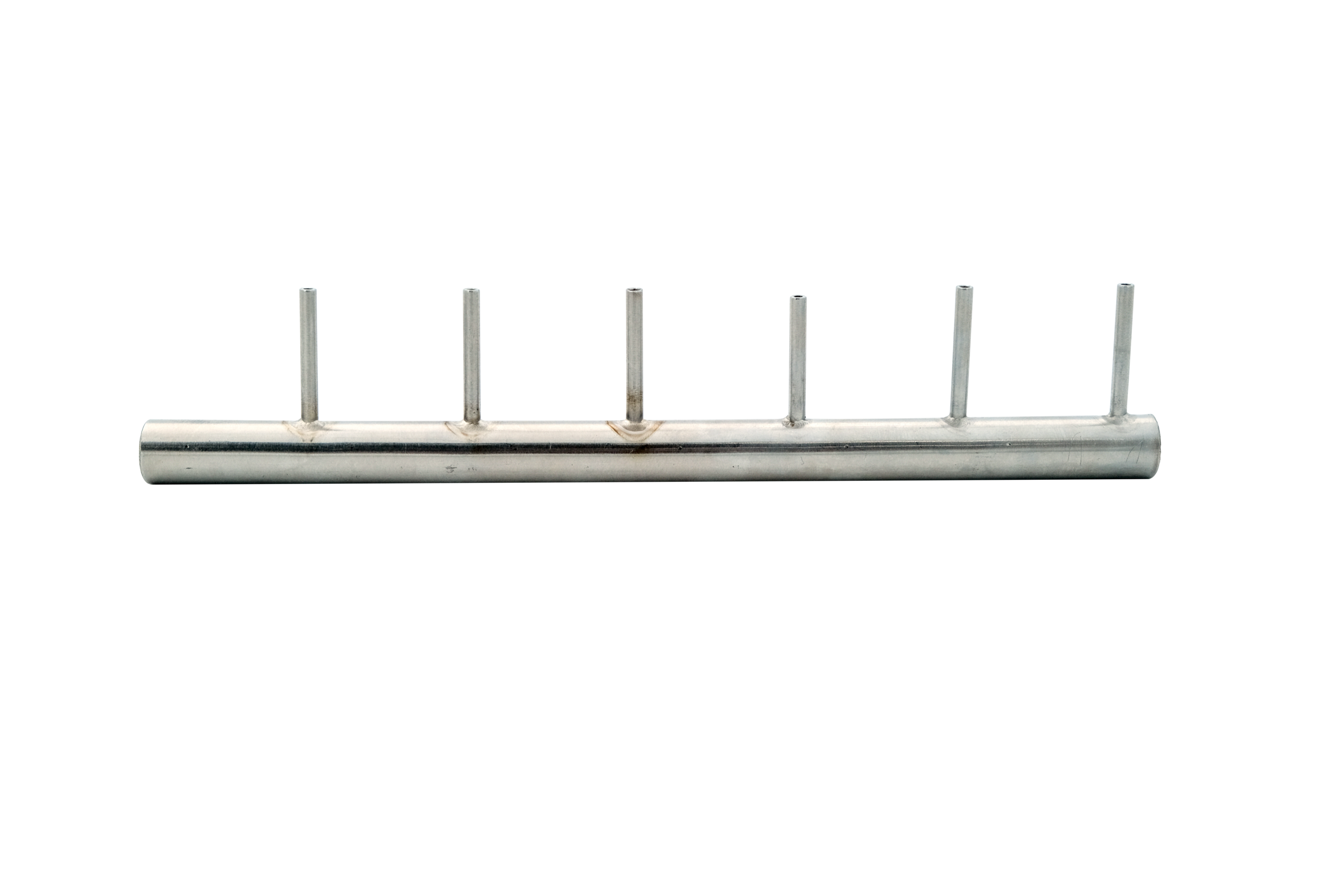

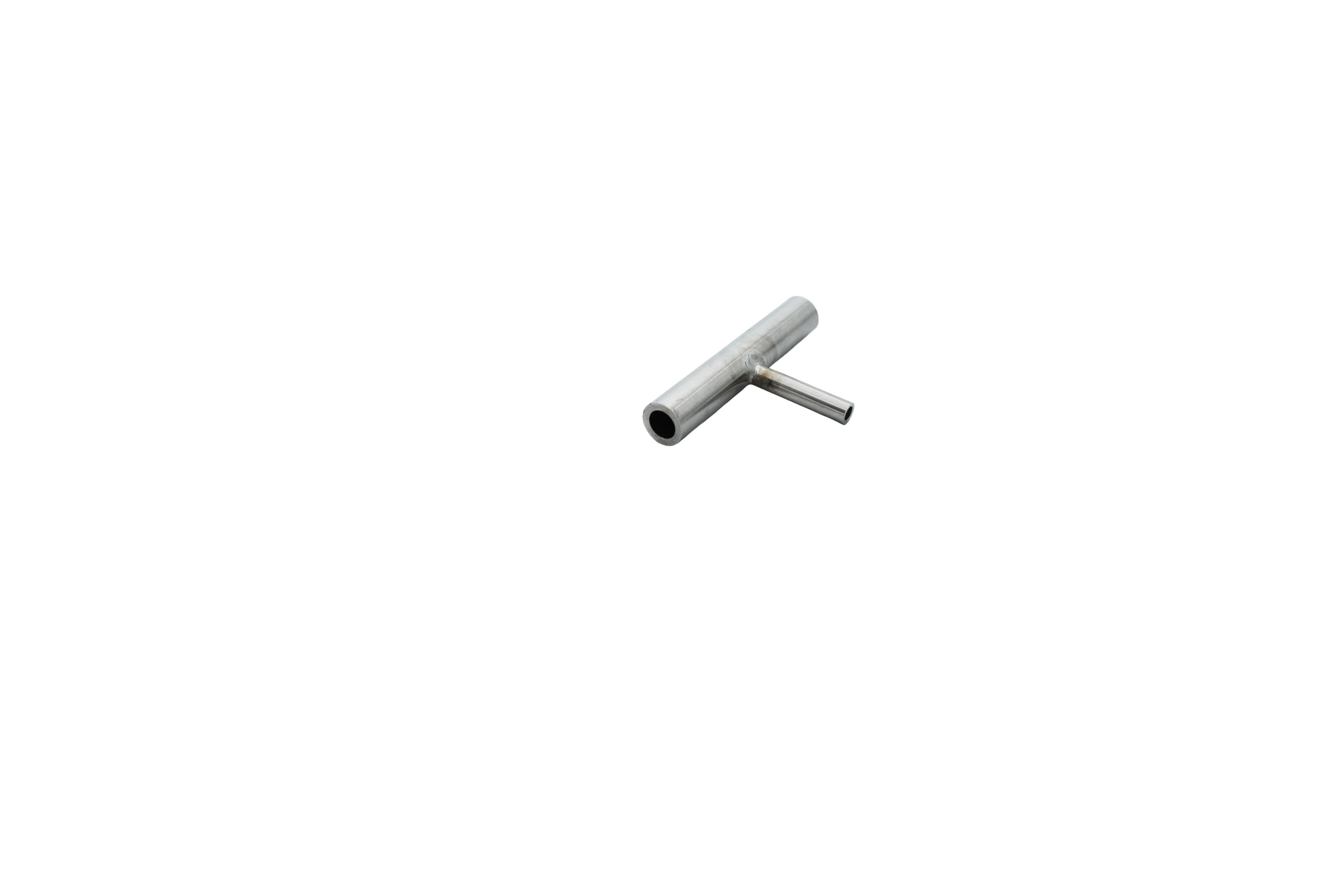

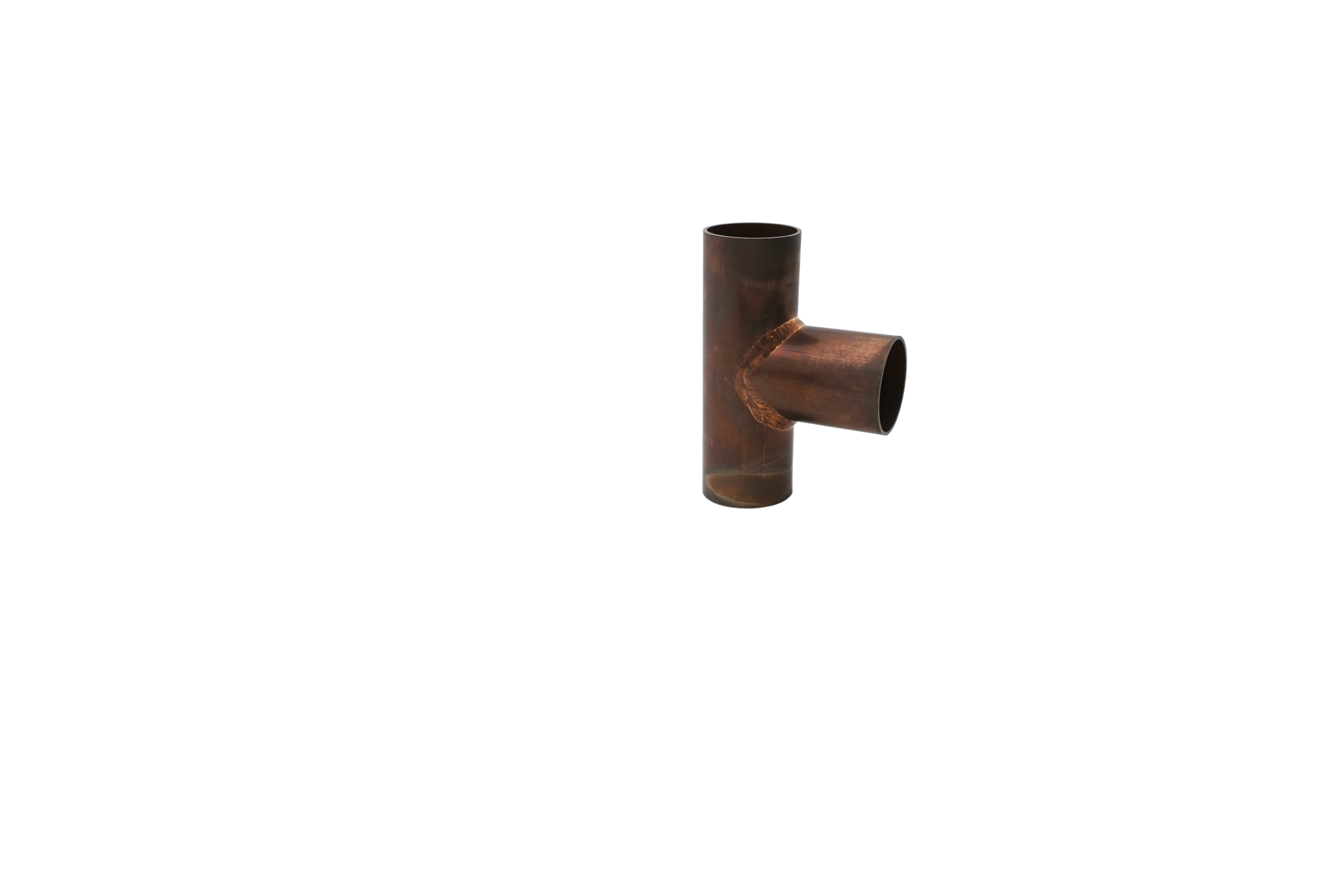

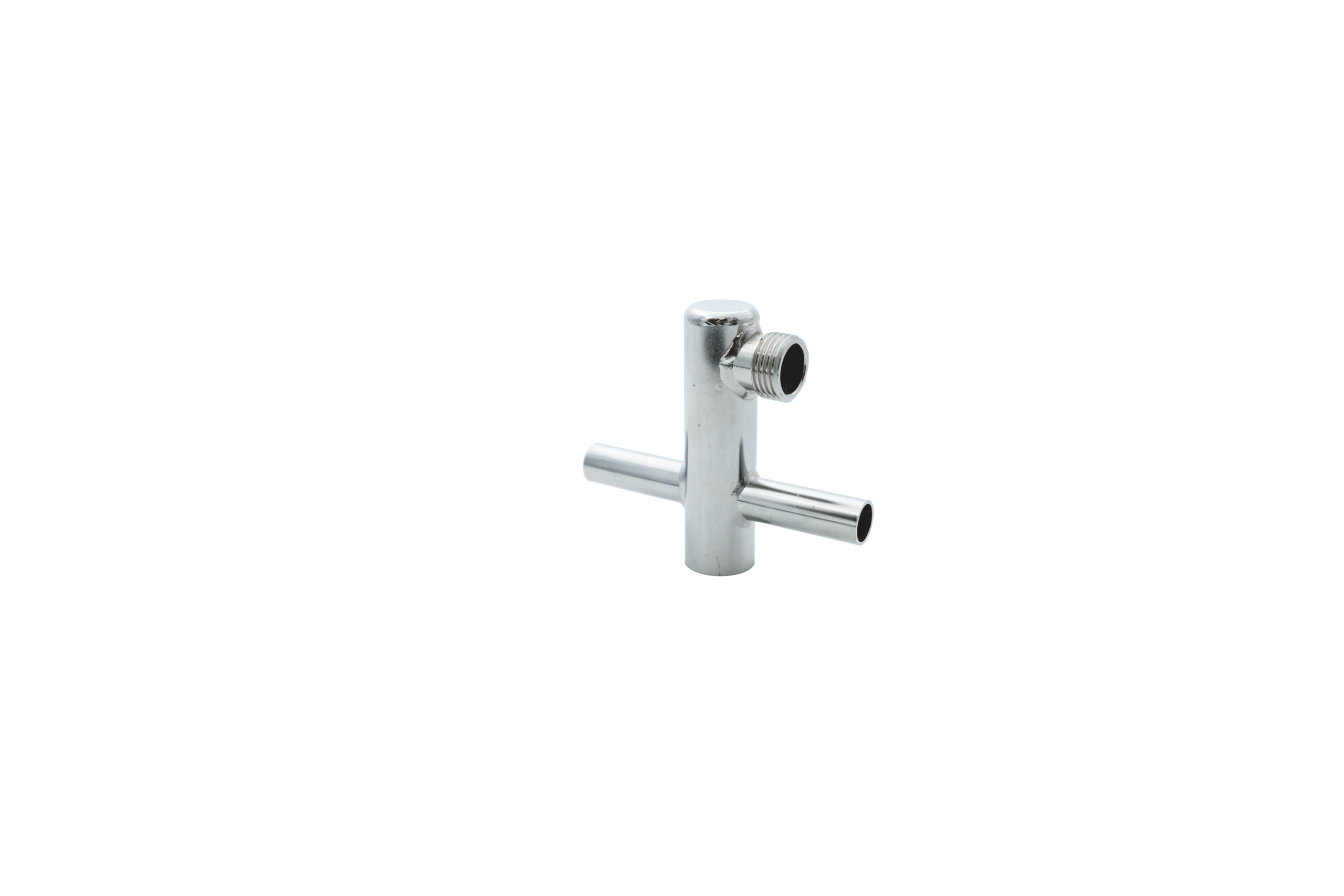

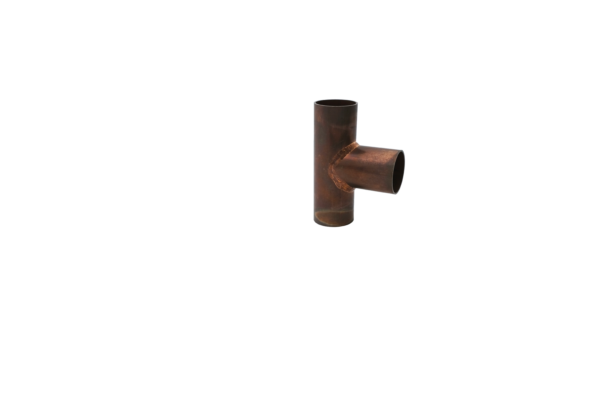

Whether you want T-pieces or manifolds, CylinWeld does the job quickly and precisely. T-DRILL CylinWeld is optimal for batch or serial production, and it is suitable for both straight and curved seams. It’s also extremely easy to use, as the automated process leaves little space for human errors.
T-DRILL CylinWeld works well with special applications like tube inside a tube and does high-quality seams even to those challenging parts which cannot be manufactured with conventional manufacturing methods.
See how CylinWeld works below:
TECHNICAL DETAILS
| Wall thickness | 0.6 – 3 mm* *4 mm possible in some cases |
| Welding range | ID Ø4 – 120 mm* Larger diameters possible case by case |
| Maximum length of branch tube | 200 mm |
| Pipe material | All materials suitable for TIG welding |
| Air consumption | 5l/min (1.3 GPM/min) |
| Shielding gas consumpion | 40l/min max |
| Weight | 257 kg without electric cabinet |
| Machine dimension | HxWxD 1460x700x900 |
| Rated Power | 3kW, fuses 16A, 230 V / 50/60Hz, single phase |
Note! The above values are intended as a guidance only.
