PLUS-500

Collaring range: Ø21,3–508 mm

Run tube sizes: Ø273–1600 mm

Pipe material: Steel, Stainless steel

Machine type: Industrial machines

Process: Collaring

PLUS-500 is designed for collaring of large pipes and vessels
Versatile collaring: collars for tubes, sheet metals, and both horizontal and vertical applications
Run pipe diameter range is from 273 mm to unlimited (to be checked case by case)

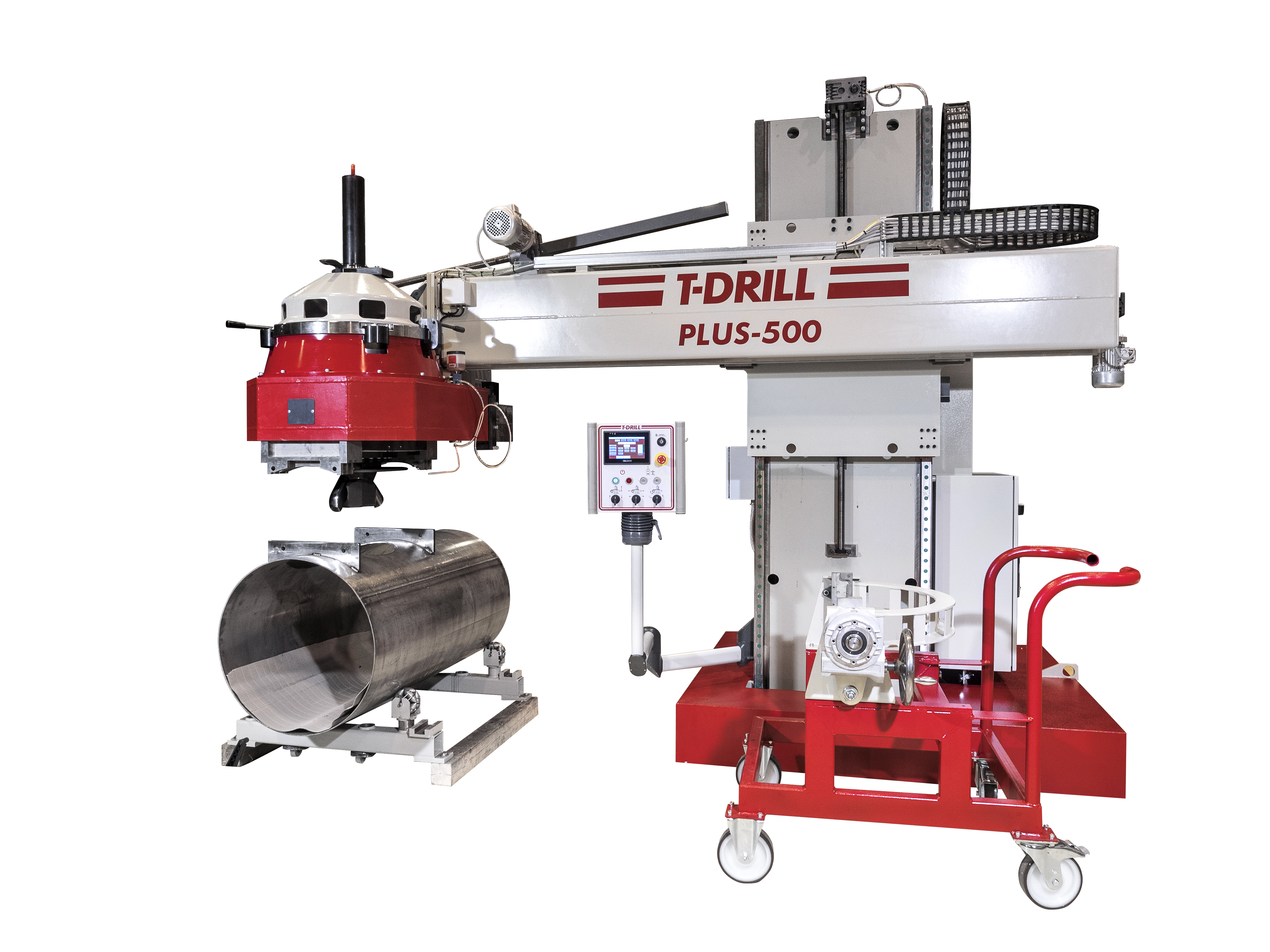

PLUS-500 COLLARING SYSTEM

T-DRILL PLUS-500 is a new, powerful and competitive T-DRILL collaring system, designed for collaring of large pipes and vessels. It is suitable for most of the malleable materials.

Typical applications for the Plus-500 are tanks and vessels (including pressure vessels and large vessels), large pipe line components, shipbuilding industry and special equipment. Run pipe diameter range is from 273 mm to unlimited (to be checked case by case) and collaring range mainly Ø219–508 mm.

Collaring range Ø21,3–219 mm is possible, too, with an optional tool adapter. For this collaring range there are two alternative tooling options: One for SCH 10 (TEC standard tools) and another for SCH 40 pipes (TEC-HD tools).

PLUS-500 is also suitable for sheet metal / plate collaring. Maximum wall thickness of stainless steel (e.g. AISI 304 and AISI 316) is 15 mm for collars Ø219–508 mm.

PLUS-500 can be used to make collars on pipes that are in horizontal or vertical position. The great advantage of the PLUS-500 is that it can be used to perform collaring operation – not only from top of the pipe position (traditional collaring process) – but also it can be tilted to any angle (up to 90°), so that the operation can be made also from the side of the pipe.

Most commonly used in:

Special applications  →

For large pipes and vessels

Collars run pipes up to Ø1600 mm

Suitable for sheet metal collaring

Maximum wall thickness of stainless steel is 15 mm for collars Ø219–508 mm

Option for vertical collaring

PLUS-500 can be tilted to any angle (up to 90°)

TECHNICAL DETAILS

Unit AUnit B
Collaring rangeØ219,1 – 508 mm (8” – 20”)Ø 21,3 – 219,1 mm (1/2” – 8”)
Run tube range219,1 – ~1600 mm (8” – ~64”)
or even up to sheet plate
33,7 – ~609,6 mm (1” – ~24”)
or even more if needed
Voltage380 – 440 V / 50/60 Hz - 3-phase380 – 440 V / 50/60 Hz - 3-phase
Air supply6 bar / 90 psi6 bar / 90 psi
Motor of hydraulics15,5 kW – Max fuses: 3x100A15,5 kW – Max fuses: 3x100A
Max sheet width2500 (opt. 3000 mm)2500 (opt. 3000 mm)

Note! The above values are intended as a guidance only.
