Typical applications include main and auxiliary seawater systems, vent, drain and ballast systems, air handling and exhaust gas and fire suppression systems.
TUBE FABRICATION FOR THE SHIPBUILDING INDUSTRY
The use of T-DRILL Collaring Machines and Flanging Machines improves productivity in the construction of both vessels and off-shore platforms.
Marine engines heavy fuel oil supply units require filtration, heating and pressurizing systems of heavy fuel oil prior to injection into diesel engines. This equipment includes several branches located at the piping systems, these can be made more reliable and economical by using collaring machines.
The use of T-DRILL Collaring Machines and Flanging Machines improves productivity in the construction of both vessels and off-shore platforms
Various components such as heat exchangers, water distillation/purification plants and HVAC systems installed during marine construction are also fabricated using the T-DRILL processes.

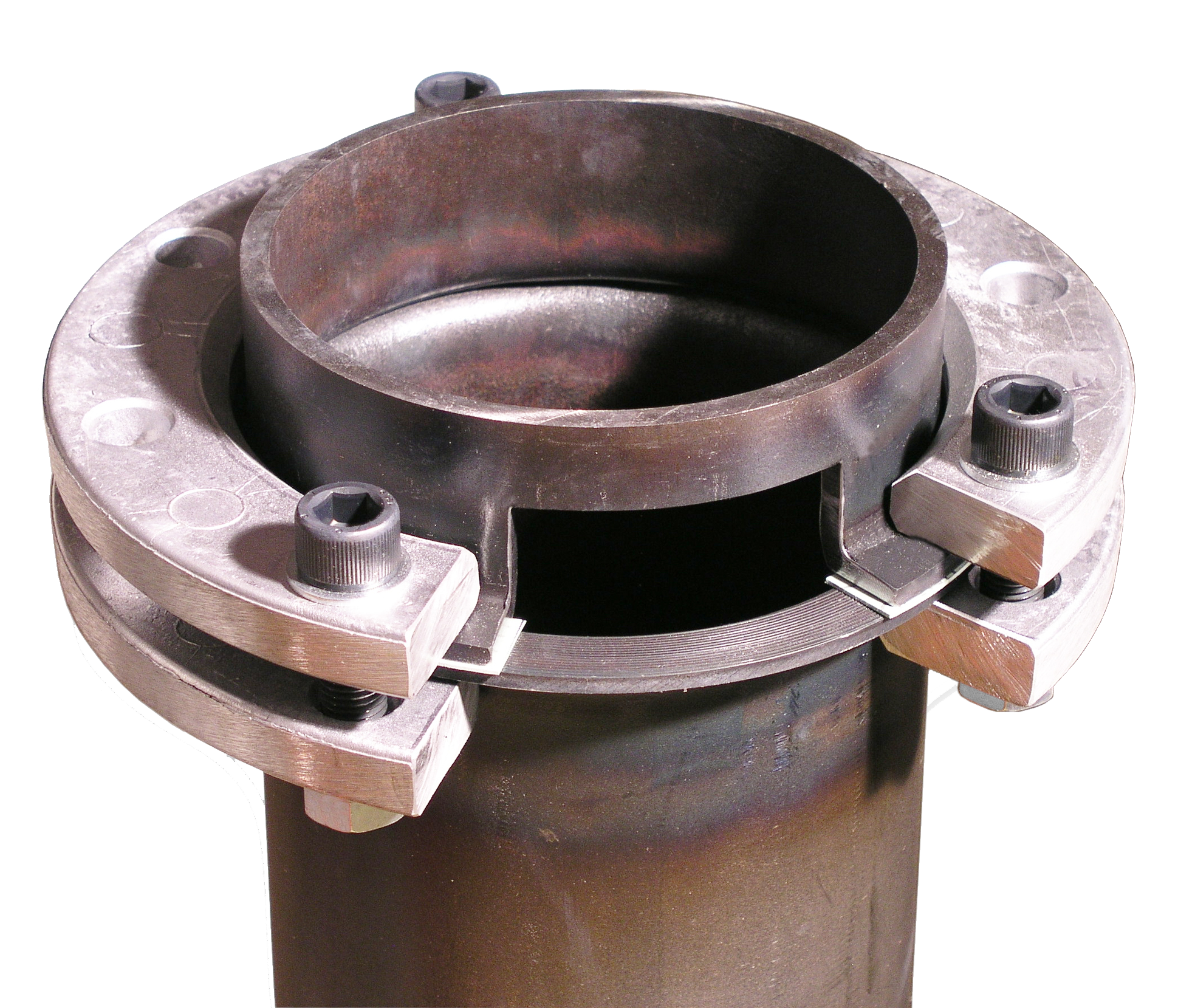

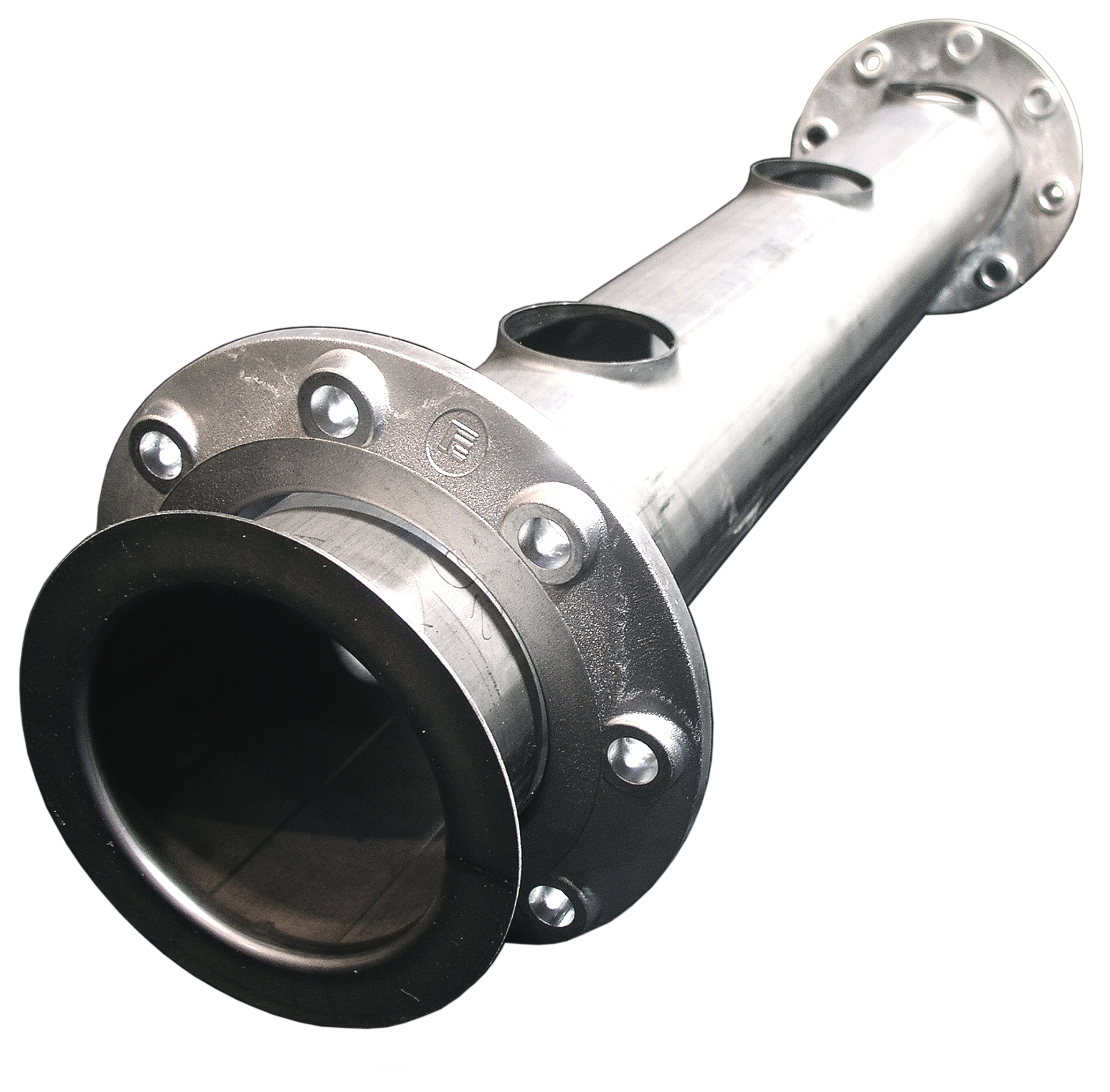

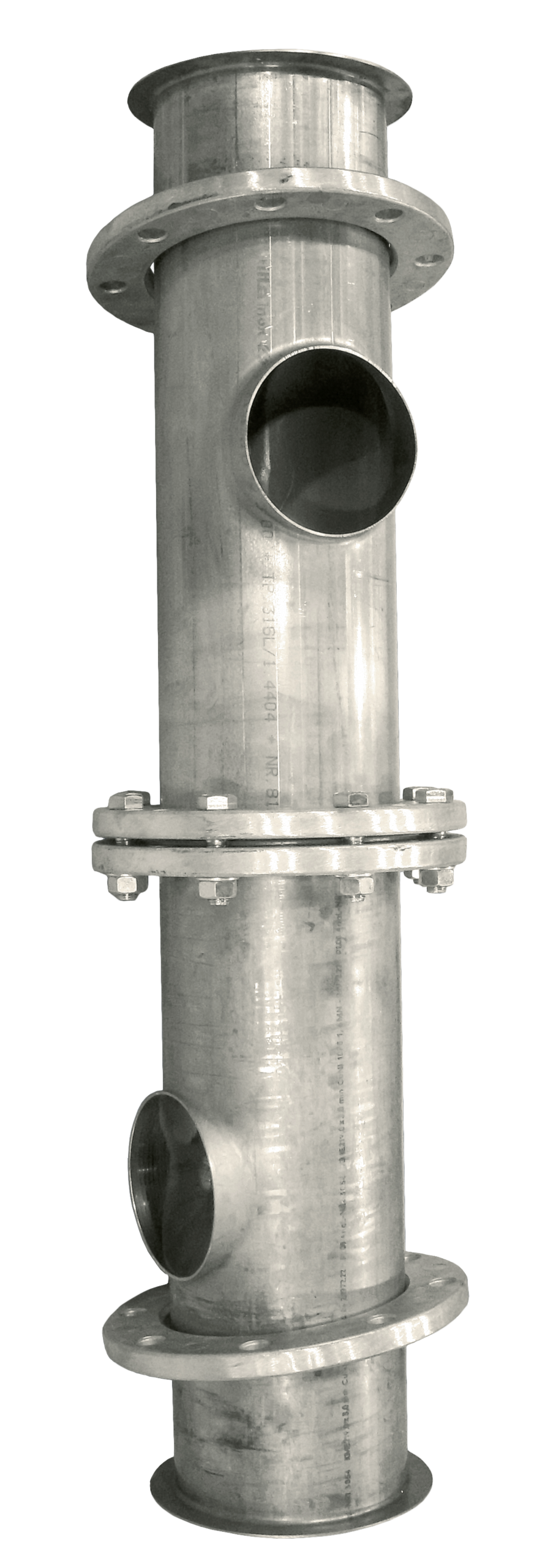

The tube branching related to these systems is made by T-DRILL pipe collaring (branching) machines. T-DRILL flanging machines form Van Stone style loose flange on one end of the pipe and can expand the other end of the pipe to provide a slip fit suitable for fillet welding. This results in a pipe spool that can be easily and quickly installed in a ship with virtually no issues about flange orientation.
T-DRILL Collaring and Flanging systems have become an industry standard recognized worldwide and accepted e.g. by:
- Det Norske Veritas
- Germanischer Lloyd
- Lloyd’s Register of Shipping
- Bureau Veritas
- ASTM F2015-00
- Russian Maritime Register of Shipping
- Pressure Equipment Directive (PED)
For more information: Approvals
F-420e Flanging Machine
Globally the first of its kind, T-DRILL’s revolutionary Flanging Machine F-420e, is by far the most advanced flanging machine on the market – implemented with entirely programmable servo technology. It is fully electric.
TEC-220 Collaring Machine
T-DRILL TEC-220 is a powerful collaring machine for up to SCH 40 pipes. The TEC-220 forms mechanically extruded outlets directly on run pipes up to 813 mm (32”).
